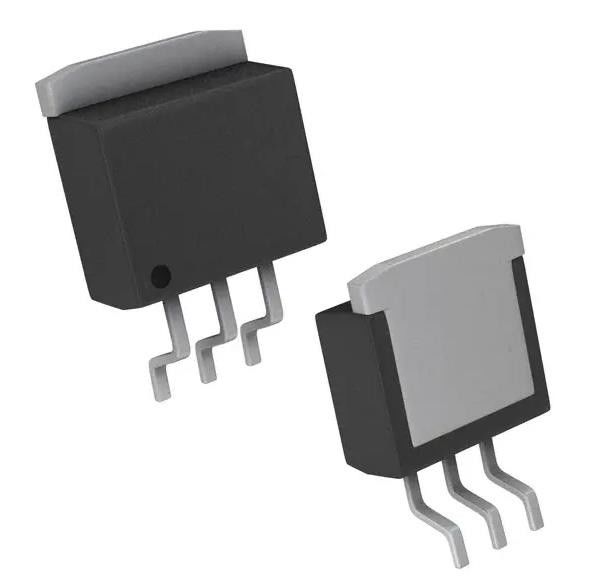

TLE4274G V50 Linear Voltage Regulator IC Positive Fixed 1 Output 400mA PG-TO263-3-1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLE4269GL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Output Type: | Fixed |
|---|---|---|---|
| Voltage - Input (Max): | 45V | Voltage - Output (Min/Fixed): | 5V |
| Current - Cathode: | 700 µA | Current - Output: | 400mA |
| Current - Quiescent (Iq): | 220 µA | Voltage Dropout (Max): | 0.5V @ 250mA |
Product Description
TLE4269GL Linear Voltage Regulator IC Positive Fixed 1 Output 150mA PG-DSO-20
Specifications of TLE4269GL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Infineon Technologies |
| Series | Automotive, AEC-Q100, OPTIREG™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | 30 mA |
| PSRR | 60dB (100Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | PG-TO263-3-1 |
| Base Product Number | TLE4274 |
Features of TLE4269GL
• Output voltage 5 V, 8.5 V or 10 V
• Output voltage tolerance ≤ ±4%
• Current capability 400 mA
• Low-drop voltage
• Very low current consumption
• Short-circuit proof
• Reverse polarity proof
• Suitable for use in automotive electronics
• Green Product (RoHS compliant) version of TLE 4274
• AEC qualified
Applications of TLE4269GL
The TLE 4274 is a low drop voltage regulator available in a TO220, TO252 and TO263 package.
Environmental & Export Classifications of TLE4269GL
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
