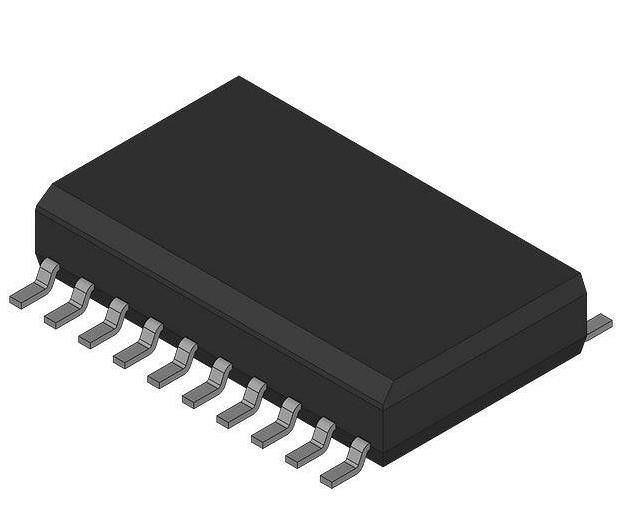

TLE4269GL Linear Voltage Regulator IC Positive Fixed 1 Output 150mA PG-DSO-20
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLE4269GL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | Automotive, AEC-Q100 | Output Type: | Fixed |
|---|---|---|---|
| Fixed: | 1 | Voltage - Input (Max): | 45V |
| Voltage - Output (Min/Fixed): | 5V | Current - Cathode: | 700 µA |
| Voltage Dropout (Max): | -40°C ~ 125°C (TA) | Temperature Coefficient: | -0.5V @ 100mA |
Product Description
TLE4269GL Linear Voltage Regulator IC Positive Fixed 1 Output 150mA PG-DSO-20
Specifications of TLE4269GL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Infineon Technologies |
| Series | Automotive, AEC-Q100 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 300 µA |
| PSRR | - |
| Control Features | Reset |
| Protection Features | Antisaturation, Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-20 |
Features of TLE4269GL
• Output voltage tolerance ≤ ±2%
• 150 mA current capability
• Very low current consumption
• Early warning
• Reset output low down to VQ =1V
• Overtemperature protection
• Reverse polarity proof
• Adjustable reset threshold
• Very low drop voltage
• Wide temperature range
• Integrated pull-up resistor at logic outputs
• Green Product (RoHS compliant)
Applications of TLE4269GL
General automotive applications.
Environmental & Export Classifications of TLE4269GL
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
