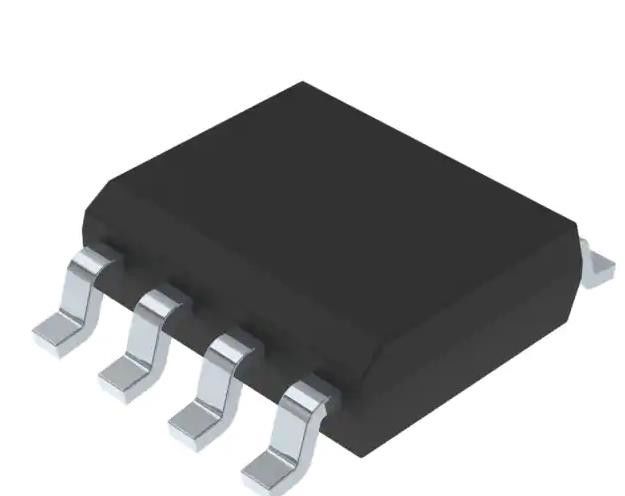

TL431AIYDT Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±1% 100 mA 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL431AIYDT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Voltage - Output (Min/Fixed): | 2.495V |
|---|---|---|---|
| Voltage - Output (Max): | 36 V | Current - Output: | 100 MA |
| Tolerance: | ±1% | Current - Cathode: | 700 µA |
| Operating Temperature: | -40°C ~ 125°C (TA) | Temperature Coefficient: | - |
Product Description
TL431AIYDT Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±1% 100 mA 8-SOIC
Specifications of TL431AIYDT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.495V |
| Voltage - Output (Max) | 36 V |
| Current - Output | 100 mA |
| Tolerance | ±1% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 700 µA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TL431 |
Features of TL3472IDR
• AEC-Q100 qualified
• Adjustable output voltage: 2.5 to 36 V
• Sink current capability: 1 to 100 mA
• Typical output impedance: 0.22 Ω
• 0.5% voltage precision only on the TL431B version
• 1% and 2% voltage precision
• Automotive temp. range -40 °C to +125 °C
Applications of TL431AIYDT
• Power supply
• Industrial
• Automotive
Environmental & Export Classifications of TL431AIYDT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
