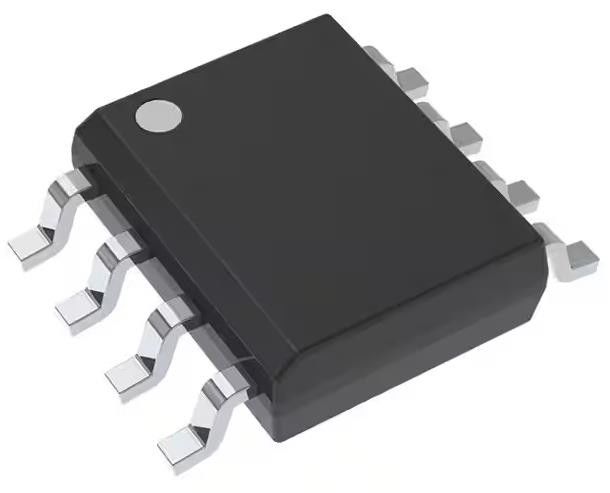

TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL3472IDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Amplifier Type: | General Purpose | Number Of Circuits: | 2 |
|---|---|---|---|
| Slew Rate: | 13V/µs | Gain Bandwidth Product: | 4 MHz |
| Current - Input Bias: | 100 NA | Voltage - Input Offset: | 1 MV |
| Current - Supply: | 3.5mA (x2 Channels) | Current - Output / Channel: | 34 MA |
Product Description
TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC
Specifications of TL3472IDR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 13V/µs |
| Gain Bandwidth Product | 4 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 3.5mA (x2 Channels) |
| Current - Output / Channel | 34 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TL3472 |
Features of TL3472IDR
* Wide Gain-Bandwidth Product . . . 4 MHz
* High Slew Rate . . . 13 V/μs
* Fast Settling Time . . . 1.1 μs to 0.1%
* Wide-Range Single-Supply Operation . . . 4 V to 36 V
* Wide Input Common-Mode Range Includes Ground (VCC−)
* Low Total Harmonic Distortion . . . 0.02%
* Large-Capacitance Drive Capability . . . 10,000 pF
* Output Short-Circuit Protection
Applications of TL3472IDR
Quality, low-cost, bipolar fabrication with innovative design concepts is employed for the TL3472 operational amplifier.
Environmental & Export Classifications of TL3472IDR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
