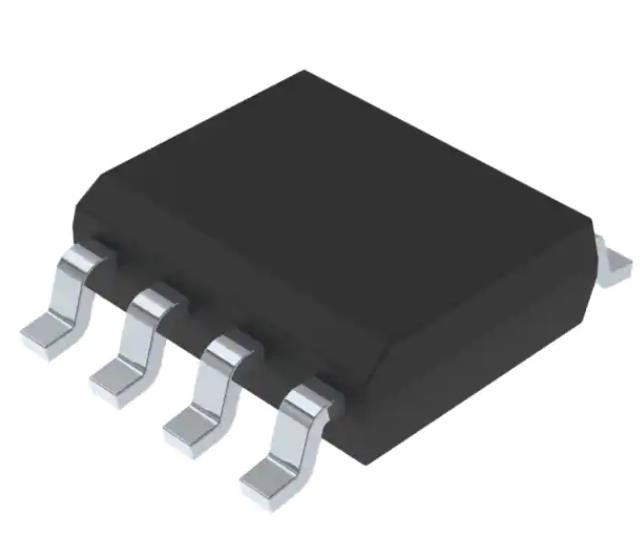

M93C66-WMN6TP EEPROM Memory IC Integrated Circuit Chip 4Kbit Microwire 2 MHz 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M93C66-WMN6TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | EEPROM |
|---|---|---|---|
| Technology: | EEPROM | Memory Size: | 4Kbit |
| Memory Organization: | 512 X 8, 256 X 16 | Memory Interface: | Microwire |
| Clock Frequency: | 2 MHz | Write Cycle Time - Word, Page: | 5ms |
Product Description
M93C66-WMN6TP EEPROM Memory IC Integrated Circuit Chip 4Kbit Microwire 2 MHz 8-SOIC
Specifications of M93C66-WMN6TP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 4Kbit |
| Memory Organization | 512 x 8, 256 x 16 |
| Memory Interface | Microwire |
| Clock Frequency | 2 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | M93C66 |
Features of M93C66-WMN6TP
• Industry standard MICROWIRE™ bus
• Single supply voltage:
– 2.5 V to 5.5 V for M93Cx6-W
– 1.8 V to 5.5 V for M93Cx6-R
• Dual organization: by word (x16) or byte (x8)
• Programming instructions that work on: byte, word or entire memory
• Self-timed programming cycle with auto-erase: 5 ms
• READY/BUSY signal during programming
• 2 MHz clock rate
• Sequential read operation
• Enhanced ESD/latch-up behavior
• More than 4 million write cycles
• More than 200-year data retention
Applications of M93C66-WMN6TP
The M93C46 (1 Kbit), M93C56 (2 Kbit), M93C66 (4 Kbit), M93C76 (8 Kbit) and M93C86 (16 Kbit) are electrically erasable programmable memory (EEPROM) devices accessed through the MICROWIRE™ bus protocol. The memory array can be configured either in bytes (x8b) or in words (x16b).
Environmental & Export Classifications of M93C66-WMN6TP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
