LT3682IDD#TRPBF Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3682IDD#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 3.6V |
|---|---|---|---|
| Voltage - Input (Max): | 36V | Voltage - Output (Min/Fixed): | 0.8V |
| Voltage - Output (Max): | 20V | Current - Output: | 1A |
| Frequency - Switching: | 250kHz ~ 2.2MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | LT3682IDD#TRPBF,LT3682IDD#TRPBF Switching Regulator IC |
||
Product Description
LT3682IDD#TRPBF Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A
Specifications of LT3682IDD#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 20V |
| Current - Output | 1A |
| Frequency - Switching | 250kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

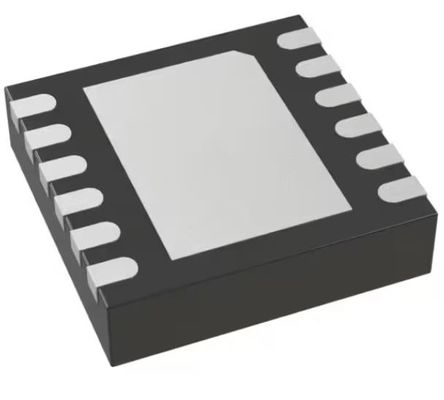

| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| Base Product Number | LT3682 |
Features of LT3682IDD#TRPBF
* Wide Input Range:
- Operation from 3.6V to 36V
- Overvoltage Lockout Protects Circuits through
- 60V Transients
* 1A Output Current
* Low Ripple Burst Mode® Operation
- IQ = 75μA at 12VIN to 3.3VOUT
- Output Ripple < 15mVP-P
* Adjustable Switching Frequency: 250kHz to 2.2MHz
* Short-Circuit Protected
* Synchronizable Between 300kHz and 2.2MHz
* 0.8V Feedback Reference Voltage
* Output Voltage 0.8V to 20V
* Soft-Start Capability
* Power Good Flag
* Small 12-Pin Thermally Enhanced 3mm × 3mm DFN Package
Applications of LT3682IDD#TRPBF
* Automotive Battery Regulation
* Automotive Entertainment Systems
* Industrial Supplies
* Power for Portable Products
* Distributed Supply Regulation
Environmental & Export Classifications of LT3682IDD#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
