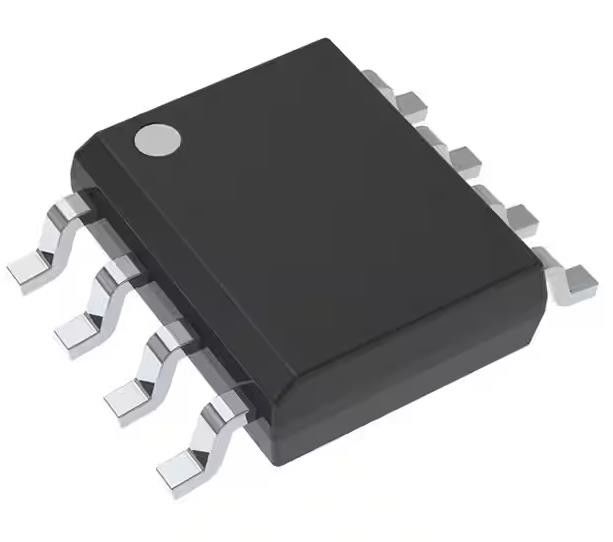

LM2903DR Comparator Differential Open-Collector Rail-to-Rail 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2903DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Differential | Number Of Elements: | 2 |
|---|---|---|---|
| Output Type: | Open-Collector, Rail-to-Rail | Voltage - Supply, Single/Dual (±): | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max): | 7mV @ 30V | Current - Input Bias (Max): | 0.25µA @ 5V |
| Current - Output (Typ): | 20mA | Current - Quiescent (Max): | 2.5mA |
| High Light: | LM2903DR,LM2903DR Comparator |
||
Product Description
LM2903DR Comparator Differential Open-Collector, Rail-to-Rail 8-SOIC
Specifications of LM2903DR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Differential |
| Number of Elements | 2 |
| Output Type | Open-Collector, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 7mV @ 30V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 2.5mA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | - |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM2903 |
Features of LM2903DR
• NEW LM393B and LM2903B
• Improved specifications of B-version
– Maximum rating: up to 38 V
– ESD rating (HBM): 2k V
– Low input offset: 0.37 mV
– Low input bias current: 3.5 nA
– Low supply-current: 200 µA per comparator
– Faster response time of 1 µsec
– Extended temperature range for LM393B
– Available in tiny 2 x 2mm WSON package
• B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions
• Common-mode input voltage range includes ground
• Differential input voltage range equal to maximumrated supply voltage: ±38 V
• Low output saturation voltage
• Output compatible with TTL, MOS, and CMOS
Applications of LM2903DR
• Vacuum robot
• Single phase UPS
• Server PSU
• Cordless power tool
• Wireless infrastructure
• Applicances
• Building automation
• Factory automation & control
• Motor drives
• Infotainment & cluster
Environmental & Export Classifications of LM2903DR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
