LM1117IDTX-ADJ / NOPB Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM1117IDTX-ADJ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 15V | Voltage - Output (Min/Fixed): | 1.25V |
| Voltage Dropout (Max): | 1.2V @ 800mA | Current - Output: | 1.2V @ 800mA |
| Current - Quiescent (Iq): | 5 MA | PSRR: | 75dB (120Hz) |
| High Light: | LM1117IDTX-ADJ / NOPB,Linear Voltage Regulator IC 800mA |
||
Product Description

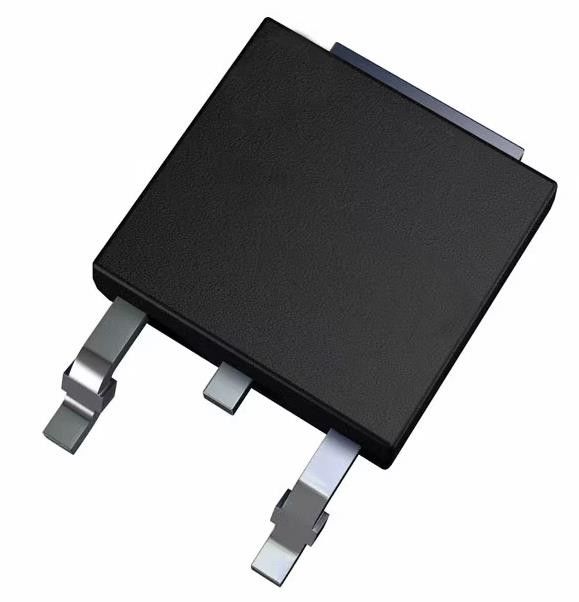

LM1117IDTX-ADJ / NOPB Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA
Specifications of LM1117IDTX-ADJ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 13.8V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Base Product Number | LM1117 |
Features of LM1117IDTX-ADJ/NOPB
• For a newer drop-in alternative, see the TLV1117
• For drop-in replacements in fixed output SOT-223 package configuration and improved functionality, see the TLV761
• Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable versions
• Space-saving SOT-223 and WSON packages
• Current limiting and thermal protection
• Output current: 800 mA
• Line regulation: 0.2% (maximum)
• Load regulation: 0.4% (maximum)
• Temperature range:
– LM1117: 0°C to +125°C
– LM1117I: –40°C to +125°C
Applications of LM1117IDTX-ADJ/NOPB
• AC drive power stage modules
• Merchant network and server PSU
• Industrial AC/DC
• Ultrasound scanners
• Servo drive control modules
Environmental & Export Classifications of LM1117IDTX-ADJ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
