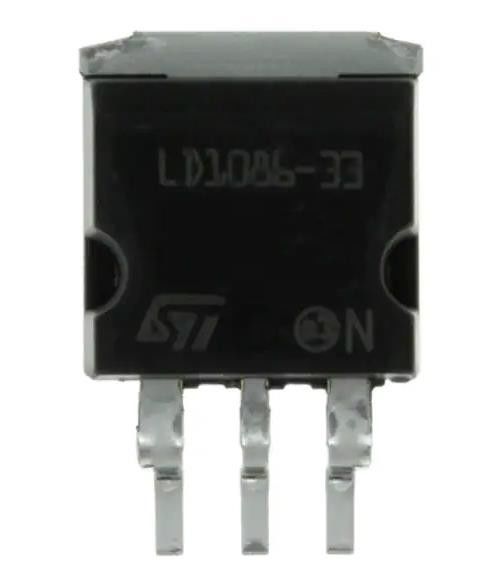

LD1086D2M33TR Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A D2PAK-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LD1086D2M33TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 30V | Voltage - Output (Min/Fixed): | 3.3V |
| Voltage Dropout (Max): | 1.5V @ 1.5A | Current - Output: | 1.5A |
| Current - Quiescent (Iq): | 10 MA | PSRR: | 79dB (120Hz) |
| High Light: | LD1086D2M33TR,Linear Voltage Regulator IC 1.5A |
||
Product Description
LD1086D2M33TR Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A D2PAK-3
Specifications of LD1086D2M33TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 79dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | D2PAK-3 |
| Base Product Number | LD1086 |
Features of LD1086D2M33TR
• Typical dropout: 1.3 V at 1.5 A
• Three-terminal adjustable or fixed output voltage: 1.8 V, 2.5 V, 3.3 V, 5 V
• Automotive grade (adjustable VOUT in TO-220 and DPAK packages only)
• Output current guaranteed up to 1.5 A
• Output tolerance: ± 1% at 25 °C and ± 2% in full temperature range
• Internal power and thermal limit
• Wide operating temperature range - 40 °C to 125 °C
• Package available: TO-220, D²PAK, D²PAK/A, DPAK and DFN8 (4x4)
• Pinout compatibility with standard adjustable voltage regulators
Applications of LD1086D2M33TR
The LD1086 is a low drop voltage regulator capable of providing up to 1.5 A of output current.
Environmental & Export Classifications of LD1086D2M33TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
