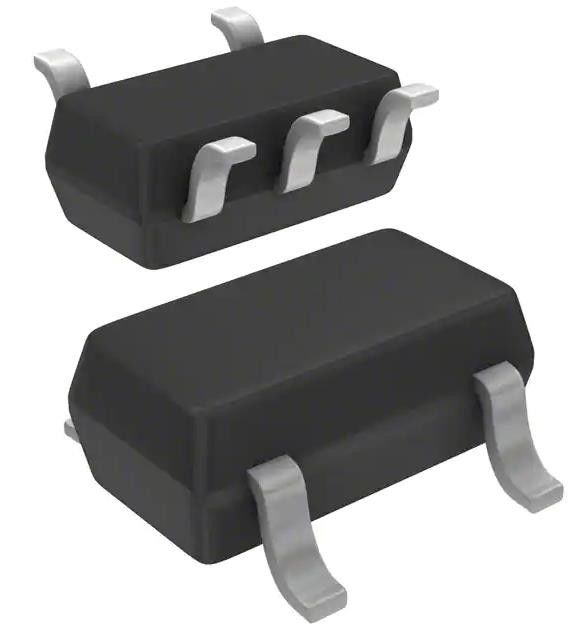

SPX5205M5-L / TR Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SPX5205M5-L/TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 16V | Voltage - Output (Min/Fixed): | 1.235V |
| Voltage - Output (Max): | 15.65V | Voltage Dropout (Max): | 0.35V @ 150mA |
| Current - Output: | 150mA | Current - Quiescent (Iq): | 5 µA |
| High Light: | SPX5205M5-L/TR,SOT-23-5 Linear Voltage Regulator IC |
||
Product Description
SPX5205M5-L / TR Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
IC REG LIN POS ADJ 150MA SOT23-5
Specifications of SPX5205M5-L/TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - Linear | |
| Mfr | MaxLinear, Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.235V |
| Voltage - Output (Max) | 15.65V |
| Voltage Dropout (Max) | 0.35V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 5 µA |
| Current - Supply (Max) | 2.5 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | SPX5205 |
Features of SPX5205M5-L/TR
■ Low Noise Output LDO: 40μVRMS Possible
■ 1% Initial Accuracy
■ Very Low Quiecent Current: 70μA
■ Low Dropout Voltage (210mV at 150mA)
■ Current and Thermal Limiting
■ Reverse-Battery Protection
■ Wide Range of Fixed Output Voltages: 1.8V, 3.0V, 3.3V and 5.0V
■ Zero Off-Mode Current
■ Small 5-Pin SOT-23
■ Pin Compatible to MIC5205/MAX8877 (fixed options only) and LP2985
Applications of SPX5205M5-L/TR
■ PDA
■ Battery Powered Systems
■ Cellular Phone
■ Cordless Telephones
■ Radio Control Systems
■ Laptop, Palmtop and Notebook Computers
■ Portable Consumer Equipment
■ Portable Instrumentation
■ Bar Code Scanners
■ SMPS Post-Regulator
Environmental & Export Classifications of SPX5205M5-L/TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
