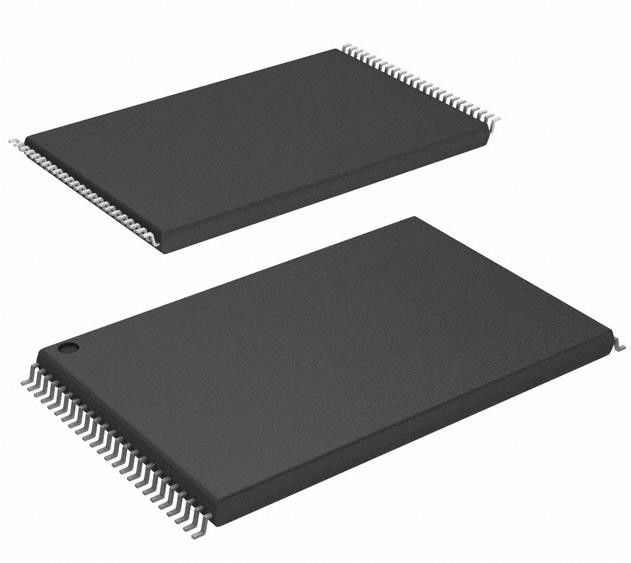

S29GL032N90TFA043 FLASH - NOR Memory IC 32Mbit Parallel 90 ns 48-TSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S29GL032N90TFA043 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | Automotive, AEC-Q100, GL-N | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Memory Type: | Non-Volatile | Memory Format: | FLASH |
| Technology: | FLASH - NOR | Memory Size: | 32Mbit |
| Memory Organization: | 4M X 8, 2M X 16 | Memory Interface: | Parallel |
| Write Cycle Time - Word, Page: | 90ns | Voltage - Supply: | 2.7V ~ 3.6V |
Product Description
S29GL032N90TFA043 FLASH - NOR Memory IC 32Mbit Parallel 90 ns 48-TSOP
IC FLASH 32MBIT PARALLEL 48TSOP
Specifications of S29GL032N90TFA043
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Mfr | Infineon Technologies |
| Series | Automotive, AEC-Q100, GL-N |
| Package | Tape & Reel (TR) |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 32Mbit |
| Memory Organization | 4M x 8, 2M x 16 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 90ns |
| Access Time | 90 ns |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.724", 18.40mm Width) |
| Supplier Device Package | 48-TSOP |
| Base Product Number | S29GL032 |
Features of S29GL032N90TFA043
■ Software features
❐ Advanced Sector Protection: offers Persistent Sector Protection and Password Sector Protection
❐ Program Suspend & Resume: read other sectors before programming operation is completed
❐ Erase Suspend & Resume: read/program other sectors before an erase operation is completed
❐ Data# polling & toggle bits provide status
❐ CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices
❐ Unlock Bypass Program command reduces overall multiple-word programming time
■ Hardware features
❐ WP#/ACC input accelerates programming time (when high voltage is applied) for greater throughput during system production. Protects first or last sector regardless of sector protection settings on uniform sector models
❐ Hardware reset input (RESET#) resets device
❐ Ready/Busy# output (RY/BY#) detects program or erase cycle completion
Descriptions of S29GL032N90TFA043
The S29GL-N family of devices are 3.0-Volt single-power Flash memory manufactured using 110 nm MirrorBit technology. The S29GL064N is a 64-Mb device organized as 4,194,304 words or 8,388,608 bytes. The S29GL032N is a 32-Mb device organized as 2,097,152 words or 4,194,304 bytes. Depending on the model number, the devices have 16-bit wide data bus only, or a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The devices can be programmed either in the host system or in standard EPROM programmers.
Environmental & Export Classifications of S29GL032N90TFA043
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
