LP38798SDX-ADJ/NOPB Linear Voltage Regulator IC With 1 Output 800mA 12-WSON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP38798SDX-ADJ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 20V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.2V | Voltage - Output (Max): | 19.8V |
| Voltage Dropout (Max): | 1.1V @ 800mA | Current - Output: | 800mA |
| Current - Quiescent (Iq): | 1.4 MA | Current - Supply (Max): | 2.2 MA |
| PSRR: | 60dB (1kHz) | Protection Features: | Over Current, Over Temperature, Short Circuit |
Product Description

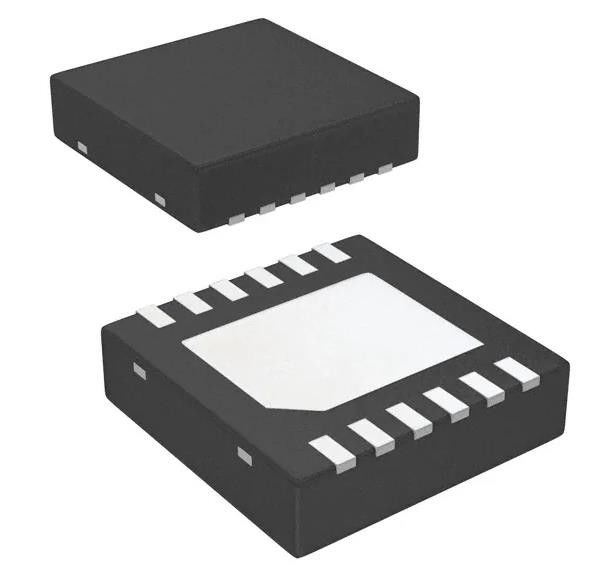

LP38798SDX-ADJ/NOPB Linear Voltage Regulator IC With 1 Output 800mA 12-WSON
IC REG LIN POS ADJ 800MA 12WSON
Specifications of LP38798SDX-ADJ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 19.8V |
| Voltage Dropout (Max) | 1.1V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 1.4 mA |
| Current - Supply (Max) | 2.2 mA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (4x4) |
| Base Product Number | LP38798 |
Features of LP38798SDX-ADJ/NOPB
• Wide Operating Input Voltage Range: 3 V to 20 V
• Ultra-Low Output Noise: 5 µVRMS (10 Hz to 100 kHz)
• High PSRR: 90 dB at 10 kHz, 60 dB at 100 kHz
• ±1% Output Voltage Initial Accuracy (TJ = 25°C)
• Very Low Dropout: 200 mV (Typical) at 800 mA
• Stable with Ceramic or Tantalum Output Capacitors
• Excellent Line and Load Transient Response
• Current Limit and Overtemperature Protection
• Create a Custom Design Using the LP38798 With the WEBENCH® Power Designer
Applications of LP38798SDX-ADJ/NOPB
• RF Power Supplies: PLLs, VCOs, Mixers, LNAs
• Telecom Infrastructure
• Wireless Infrastructure
• Very Low-Noise Instrumentation
• Precision Power Supplies
• High-Speed, High-Precision Data Converters
Environmental & Export Classifications of LP38798SDX-ADJ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
