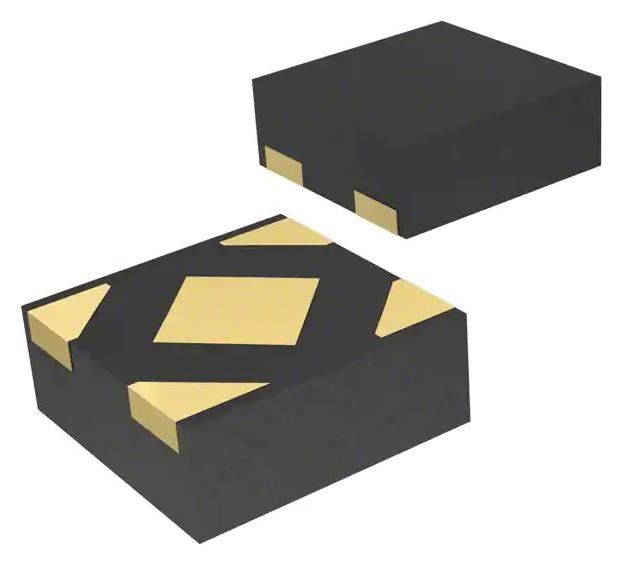

TPS7A02185PDQNR Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-X2SON
IC REG LINEAR 1.85V 200MA 4X2SON
Specifications of TPS7A02185PDQNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 60 nA |
| PSRR | 55dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-X2SON (1x1) |
| Base Product Number | TPS7A02185 |
Features of TPS7A02185PDQNR
• Ultra-low IQ: 25 nA (typ), even in dropout
• Shutdown IQ: 3 nA (typ)
• Excellent transient response (1 mA to 50 mA)
– < 10-µs settling time
– 100-mV undershoot
• Packages:
– 1.0-mm × 1.0-mm X2SON
– SOT23-5
– 0.64-mm × 0.64-mm DSBGA
• Input voltage range: 1.5 V to 6.0 V
• Output voltage range: 0.8 V to 5.0 V (fixed)
• Output accuracy: 1.5% over temperature
• Smart enable pulldown
• Very low dropout:
– 270 mV (max) at 200 mA (VOUT = 3.3 V)
• Stable with a 1-µF or larger capacitor
Applications of TPS7A02185PDQNR
• Wearables electronics
• Thermostats, smoke and heat detectors
• Gas, heat, and water meters
• Blood glucose monitors and pulse oximeters
• Residential circuit breakers and fault indicators
• Building security and video surveillance devices
• EPOS card readers
