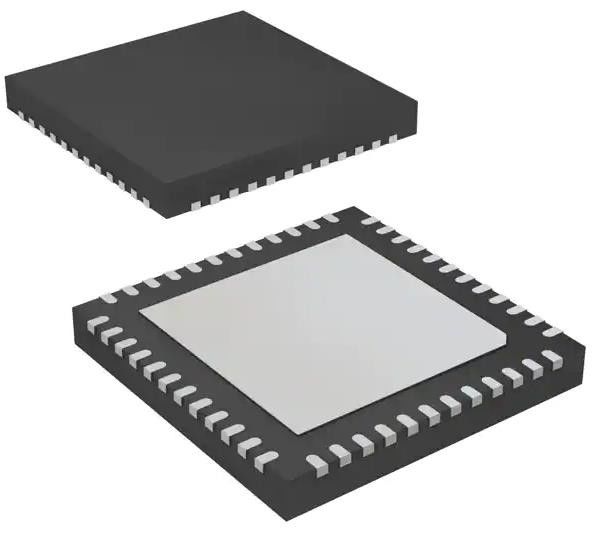

DAC3283IRGZR 16 Bit Digital To Analog Converter 2 48-VQFN (7x7)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC3283IRGZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 16 | Number Of D/A Converters: | 2 |
|---|---|---|---|
| Settling Time: | 10.4ns (Typ) | Voltage - Supply, Analog: | 3V ~ 3.6V |
| Voltage - Supply, Digital: | 1.7V ~ 1.9V | INL/DNL (LSB): | ±4, ±2 |
| Operating Temperature: | -40°C ~ 85°C | Data Interface: | LVDS - Parallel |
| High Light: | 16 Bit Digital To Analog Converter,DAC3283IRGZR Digital To Analog Converter |
||
Product Description
DAC3283IRGZR 16 Bit Digital to Analog Converter 2 48-VQFN (7x7)
IC DAC 16BIT A-OUT 48VQFN
Specifications of DAC3283IRGZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 2 |
| Settling Time | 10.4ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| INL/DNL (LSB) | ±4, ±2 |
| Architecture | Current Sink |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Mounting Type | Surface Mount |
| Base Product Number | DAC3283 |
Features of DAC3283IRGZR
* Dual, 16-Bit,800 MSPS DACS
* 8-Bit Input LVDS Data Bus
- Byte-Wide Interleaved Data Load
- 8 Sample Input FIFO
- Optional Data Pattern Checker
* Multi-DAC Synchronization
* Selectable 2x-4x Interpolation Filters
- Stop-Band Attenuation > 85 dB
* Fs/2 and + Fs/4 Coarse Mixer
* Digital Quadrature Modulator Correction
- Gain, Phase and Offset Correction
* Temperature Sensor
* 3- or 4-Wire Serial Control Interface
* On-Chip 1.2-V Reference
* Differential Scalable Output: 2 to 20 mA
* Single-Carrier TM1 WCDMA ACLR: 82 dBc at fout = 122.88 MHz
* Low Power: 1.3 W at 800 MSPS
* Space Saving Package: 48-pin 7x7mm QFN
Applications of DAC3283IRGZR
* Cellular Base Stations
* Diversity Transmit
* Wideband Communications
* Digital Synthesis
Environmental & Export Classifications of DAC3283IRGZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
