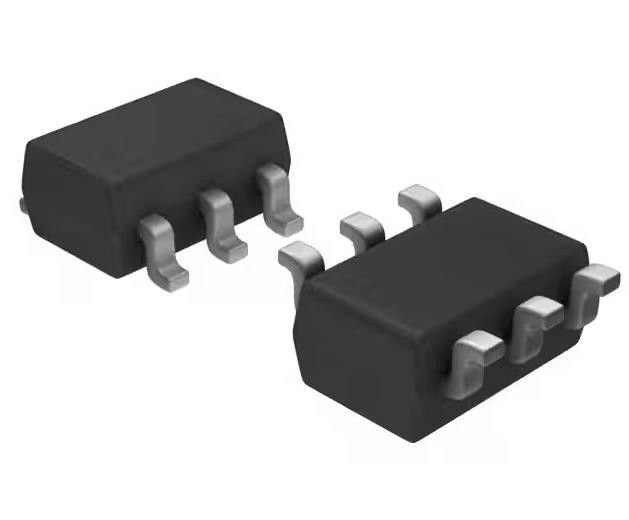

LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail - To - Rail SOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV981MFX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | General Purpose | Number Of Circuits: | 1 |
|---|---|---|---|
| Output Type: | Rail-to-Rail | Slew Rate: | 0.42V/µs |
| Gain Bandwidth Product: | 1.5 MHz | Current - Input Bias: | 14 NA |
| Voltage - Input Offset: | 1 MV | Current - Supply: | 116µA |
| Current - Output / Channel: | 100 MA | Voltage - Supply Span (Min): | 1.8 V |
| High Light: | LMV981MFX/NOPB General Purpose Amplifier,SOT-23-6 General Purpose Amplifier |
||
Product Description
LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail-to-Rail SOT-23-6
IC OPAMP GP 1 CIRCUIT SOT23-6
Specifications of LMV981MFX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.42V/µs |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 14 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 116µA |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | LMV981 |
Features of LMV981MFX/NOPB
• Ensured 1.8-V, 2.7-V, and 5-V Specifications
• Output Swing:
– 600-Ω Load: 80-mV from Rail
– 2-kΩ Load: 30-mV from Rail
• VCM 200 mV Beyond Rails
• Supply Current (Per Channel): 100 µA
• Gain Bandwidth Product: 1.4 MHz
• Maximum VOS: 4 mV
• Gain with 600-Ω Load: 101 dB
• Ultra-Small Package: DSBGA 1.0 mm × 1.5 mm
• Turnon Time from Shutdown: 19 µs
• Independent Shutdown on Dual
• Temperature Range: −40°C to 125°C
Applications of LMV981MFX/NOPB
• Industrial and Automotive
• Consumer Communication
• Fitness Trackers
• Wearables
• Mobile Phones
• Portable Audio
• Portable and Battery-Powered Electronic Equipment
• Supply Current Monitoring
• Battery Monitoring
Environmental & Export Classifications of LMV981MFX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
