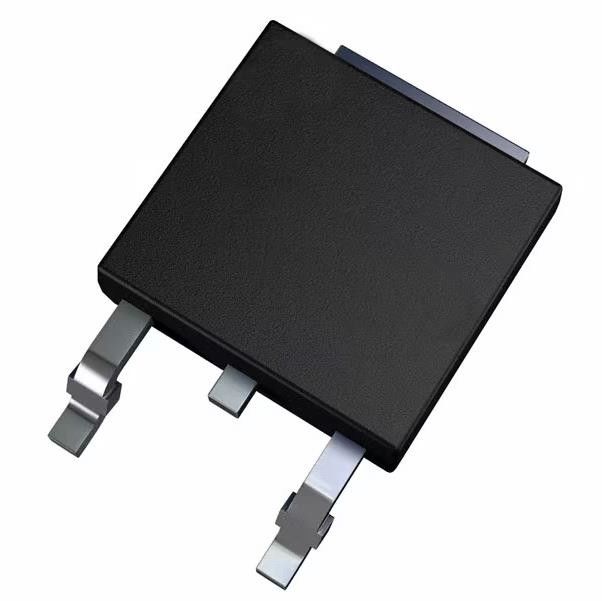

LP2950CDT-3.3/NOPB Linear Voltage Regulator IC 1 Output 100mA TO-252-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP2950CDT-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 30V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 3.3 V | Voltage Dropout (Max): | 0.6V @ 100mA |
| Current - Output: | 100mA | Current - Quiescent (Iq): | 120 µA |
| Current - Supply (Max): | 14 MA | Protection Features: | Over Current, Over Temperature |
| High Light: | LP2950CDT-3.3/NOPB Linear Voltage Regulator,Linear Voltage Regulator TO-252-3 |
||
Product Description
LP2950CDT-3.3/NOPB Linear Voltage Regulator IC 1 Output 100mA TO-252-3
LP2950CDT-3.3/NOPB IC REG LINEAR 3.3V 100MA TO252-3
Specifications of LP2950CDT-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 14 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Base Product Number | LP2950 |
Features of LP2950CDT-3.3/NOPB
• Input Voltage Range: 2.3 V to 30 V
• 5-V, 3-V, and 3.3-V Output Voltage Versions Available
• High Accuracy Output Voltage
• Ensured 100-mA Output Current
• Extremely Low Quiescent Current
• Low Dropout Voltage
• Extremely Tight Load and Line Regulation
• Very Low Temperature Coefficient
• Use as Regulator or Reference
• Needs Minimum Capacitance for Stability
• Current and Thermal Limiting
• Stable With Low-ESR Output Capacitors (10 mΩ to 6 Ω)
• LP2951-N Versions Only:
– Error Flag Warns of Output Dropout
– Logic-Controlled Electronic Shutdown
– Output Programmable From 1.24 V to 29 V
Applications of LP2950CDT-3.3/NOPB
• High-Efficiency Linear Regulator
• Regulator with Undervoltage Shutdown
• Low Dropout Battery-powered Regulator
• Snap-ON/Snap-OFF Regulator
Environmental & Export Classifications of LP2950CDT-3.3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
