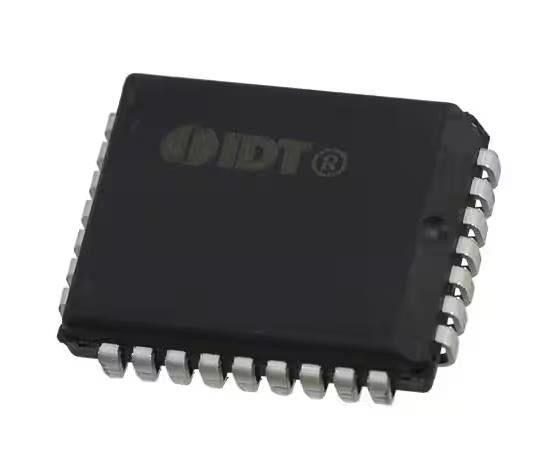

IDT72211L25J EMMC Memory Chip Synchronous FIFO 4.5K 512 x 9 40MHz 15ns 32-PLCC 14x11.46
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IDT72211L25J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Size: | 4.5K (512 X 9) | Function: | Synchronous |
|---|---|---|---|
| Data Rate: | 40MHz | Access Time: | 15ns |
| Voltage - Supply: | 4.5 V ~ 5.5 V | Current - Supply (Max): | 35mA |
| Bus Directional: | Uni-Directional | Expansion Type: | Depth, Width |
| High Light: | IDT72211L25J EMMC Memory Chip,32-PLCC EMMC Memory Chip |
||
Product Description
IDT72211L25J Synchronous FIFO 4.5K (512 x 9) 40MHz 15ns 32-PLCC (14x11.46)
IC FIFO SYNC 512X9 15NS 32PLCC
Specifications of IDT72211L25J
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| FIFOs Memory | |
| Mfr | Renesas Electronics America Inc |
| Series | 7200 |
| Package | Tube |
| Product Status | Obsolete |
| Memory Size | 4.5K (512 x 9) |
| Function | Synchronous |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Current - Supply (Max) | 35mA |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | No |
| FWFT Support | No |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-LCC (J-Lead) |
| Supplier Device Package | 32-PLCC (14x11.46) |
| Base Product Number | 72211 |
Features of IDT72211L25J
• 64 x 9-bit organization (IDT72421)
• 256 x 9-bit organization (IDT72201)
• 512 x 9-bit organization (IDT72211)
• 1,024 x 9-bit organization (IDT72221)
• 2,048 x 9-bit organization (IDT72231)
• 4,096 x 9-bit organization (IDT72241)
• 8,192 x 9-bit organization (IDT72251)
• 10 ns read/write cycle time
• Read and Write Clocks can be independent
• Dual-Ported zero fall-through time architecture
• Empty and Full Flags signal FIFO status
• Programmable Almost-Empty and Almost-Full flags can be set to any depth
• Programmable Almost-Empty and Almost-Full flags default to Empty+7, and Full-7, respectively
• Output enable puts output data bus in high-impedance state
• Advanced submicron CMOS technology
• Available in the 32-pin plastic leaded chip carrier (PLCC) and 32-pin Thin Quad Flat Pack (TQFP)
• For through-hole product please see the IDT72420/72200/72210/72220/72230/72240 data sheet
• Industrial temperature range (–40°C to +85°C) is available
• Green parts available, see ordering information
Descriptions of IDT72211L25J
The IDT72421/72201/72211/72221/72231/72241/72251 SyncFIFO™ are very high-speed, low-power First-In, First-Out (FIFO) memories with clocked read and write controls.
Environmental & Export Classifications of IDT72211L25J
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0071 |
