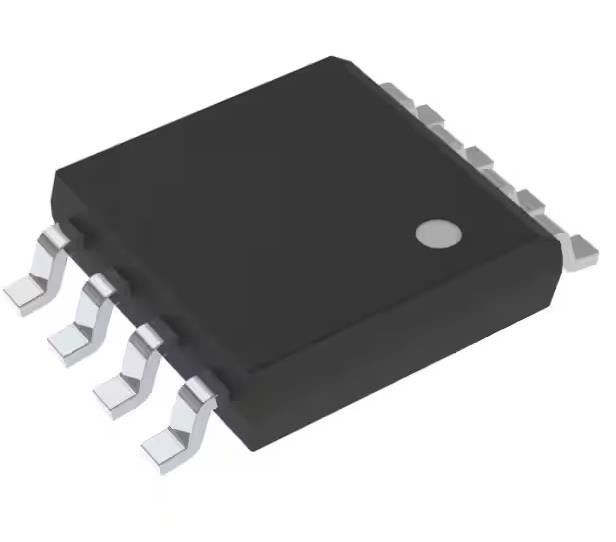

AT45DB321E-SHF2B-T Flash Memory IC Chip 32Mbit SPI 85 MHz 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AT45DB321E-SHF2B-T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Format: | FLASH | Memory Size: | 32Mbit |
|---|---|---|---|
| Memory Organization: | 512 Bytes X 8192 Pages | Memory Interface: | SPI |
| Clock Frequency: | 85 MHz | Write Cycle Time - Word, Page: | 8µs, 4ms |
| Voltage - Supply: | 2.3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TC) |
| Highlight: | AT45DB321E-SHF2B-T Flash Memory IC Chip,32Mbit Flash Memory IC Chip |
||
Product Description
AT45DB321E-SHF2B-T FLASH Memory IC Chip 32Mbit SPI 85 MHz 8-SOIC
|
AT45DB321E-SHF2B-T IC FLASH 32MBIT SPI 85MHZ 8SOIC
|
Specifications of AT45DB321E-SHF2B-T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Mfr | Adesto Technologies |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH |
| Memory Size | 32Mbit |
| Memory Organization | 512 Bytes x 8192 pages |
| Memory Interface | SPI |
| Clock Frequency | 85 MHz |
| Write Cycle Time - Word, Page | 8µs, 4ms |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AT45DB321 |
Features of AT45DB321E-SHF2B-T
Single 2.3V - 3.6V supply
Serial Peripheral Interface (SPI) compatible
Supports SPI modes 0 and 3
Supports RapidS™ operation
Continuous read capability through entire array
Up to 85MHz
Low-power read option up to 15MHz
Clock-to-output time (tV) of 6ns maximum
User configurable page size
512 bytes per page
528 bytes per page (default)
Page size can be factory pre-configured for 512 bytes
Two fully independent SRAM data buffers (512/528 bytes)
Descriptions of AT45DB321E-SHF2B-T
The Adesto® AT45DB321E is a 2.3V minimum, serial-interface sequential access Flash memory ideally suited for a wide variety of digital voice, image,program code, and data storage applications. The AT45DB321E also supports the RapidS serial interface for applications requiring very high speed operation.
Environmental & Export Classifications of AT45DB321E-SHF2B-T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
