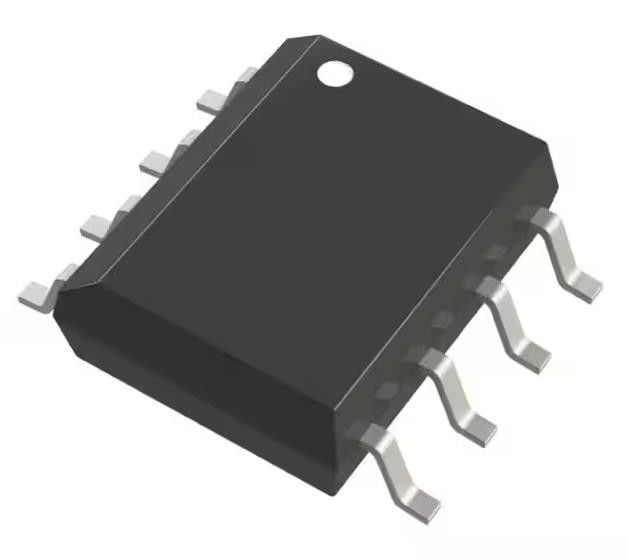

LT1763CS8-3.3#TRPBF Linear Voltage Regulator IC Positive Fixed 1 Output 500mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT1763CS8-3.3#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 20V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 3.3V | Voltage Dropout (Max): | 0.45V @ 500mA |
| PSRR: | 65dB (120Hz) | Current - Output: | 500mA |
| Protection Features: | Over Current, Over Temperature, Reverse Polarity | Operating Temperature: | -40°C ~ 125°C |
| High Light: | 500mA Linear Voltage Regulator,IC Positive Fixed Linear Voltage Regulator,LT1763CS8-3.3#TRPBF Linear Integrated Circuits |
||
Product Description
LT1763CS8-3.3#TRPBF Linear Voltage Regulator IC Positive Fixed 1 Output 500mA
LT1763CS8-3.3#TRPBF IC REG LINEAR 3.3V 500MA 8SOIC
Specifications of LT1763CS8-3.3#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Current - Output | 500mA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | LT1763 |
Features of LT1763CS8-3.3#TRPBF
* Low Noise: 20µVRMS (10Hz to 100kHz)
* Output Current: 500mA
* Low Quiescent Current: 30µA
* Wide Input Voltage Range: 1.8V to 20V
* Low Dropout Voltage: 300mV
* Very Low Shutdown Current: < 1µA
* No Protection Diodes Needed
* Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3V, 3.3V, 5V
* Adjustable Output from 1.22V to 20V
* Stable with 3.3µF Output Capacitor
* Stable with Aluminum, Tantalum or Ceramic Capacitors
* Reverse Battery Protection
* No Reverse Current
* Overcurrent and Overtemperature Protected
* 8-Lead SO and 12-Lead (4mm × 3mm) DFN Packages
Applications of LT1763CS8-3.3#TRPBF
* Cellular Phones
* Battery-Powered Systems
* Noise-Sensitive Instrumentation Systems
Environmental & Export Classifications of LT1763CS8-3.3#TRPBF
|
ATTRIBUTE |
DESCRIPTION |
|
RoHS Status |
ROHS3 Compliant |
|
Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
REACH Status |
REACH Unaffected |
|
ECCN |
EAR99 |
|
HTSUS |
8542.39.0001 |
