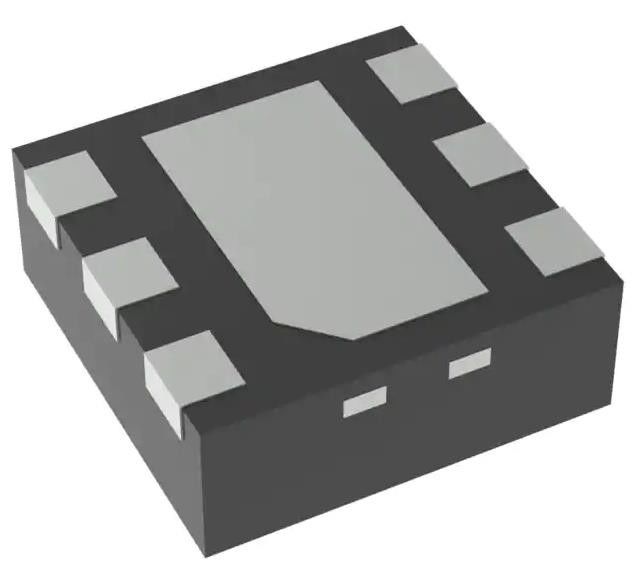

TPS73501DRVR Linear Voltage Regulator IC 1 Output 500mA 6-WSON (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS73501DRVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Max): | 6.5V | Voltage - Output (Min/Fixed): | 1.25V |
|---|---|---|---|
| Voltage - Output (Max): | 6V | Voltage Dropout (Max): | 0.5V @ 500mA |
| Current - Output: | 500mA | Current - Quiescent (Iq): | 65 µA |
| High Light: | Linear Voltage Regulator IC,TPS73501DRVR Voltage Regulator IC,TPS73501DRVR |
||
Product Description
TPS73501DRVR Linear Voltage Regulator IC 1 Output 500mA 6-WSON (2x2)
IC REG LIN POS ADJ 500MA 6WSON
Specifications of TPS73501DRVR
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - Linear |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 6V |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 65 µA |
| PSRR | 66dB ~ 22dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Base Product Number | TPS73501 |
Features of TPS73501DRVR
• Input Voltage: 2.7 V to 6.5 V
• 500-mA Low-Dropout Regulator With EN
• Low IQ: 45 μA
• Multiple Output Voltage Versions Available:
– Fixed Outputs of 1.2 V to 4.3 V
– Adjustable Outputs from 1.25 V to 6 V
• High PSRR: 68 dB at 1 kHz
• Low Noise: 13.2 μVRMS
• Fast Start-Up Time: 45 μs
• Stable With a Ceramic, 2.2-μF, Low-ESR Output Capacitor
• Excellent Load and Line Transient Response
• 2% Overall Accuracy (Load, Line, and Temperature, VOUT > 2.2 V)
• Very Low Dropout: 280 mV at 500 mA
• 2-mm × 2-mm WSON-6 and 3-mm × 3-mm SON-8 Packages
Applications of TPS73501DRVR
• Post DC-DC Converter Ripple Filtering
• IP Network Cameras
• Macro Base Stations
• Thermostats
Environmental & Export Classifications of TPS73501DRVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
