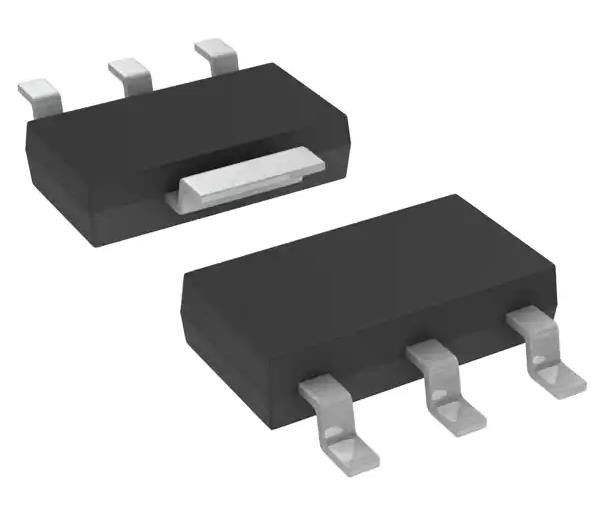

TLV1117CDCYR Linear Integrated Circuits With 1 Output 800mA SOT-223-4
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV1117CDCYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Max): | 15V | Voltage - Output (Min/Fixed): | 1.25V |
|---|---|---|---|
| Voltage - Output (Max): | 13.7V | Voltage Dropout (Max): | 1.3V @ 800mA |
| Current - Output: | 800mA | Current - Quiescent (Iq): | 10 µA |
| Control Features: | - | PSRR: | 75dB (120Hz) |
| High Light: | TLV1117CDCYR Linear Integrated Circuits,Linear Voltage Regulators IC,TLV1117CDCYR Voltage Regulators IC |
||
Product Description
TLV1117CDCYR Linear Voltage Regulators IC With 1 Output 800mA SOT-223-4
IC REG LIN POS ADJ 800MA SOT223
Specifications of TLV1117CDCYR
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - Linear |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 13.7V |
| Voltage Dropout (Max) | 1.3V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Base Product Number | TLV1117 |
Features of TLV1117CDCYR
• Output voltage options: 1.5-V, 1.8-V, 2.5-V, 3.3-V,5-V, and adjustable
• Output current: 800 mA
• Specified dropout voltage at multiple current levels
• Line regulation maximum: 0.2%
• Load regulation maximum: 0.4%
• For drop-in replacements in fixed output SOT-223 package configuration and improved functionality,see the TLV761
Applications of TLV1117CDCYR
• Electronic points of sale
• Medical, health, and fitness applications
• Printers
• Appliances and white goods
• TV set-top boxes
Environmental & Export Classifications of TLV1117CDCYR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
