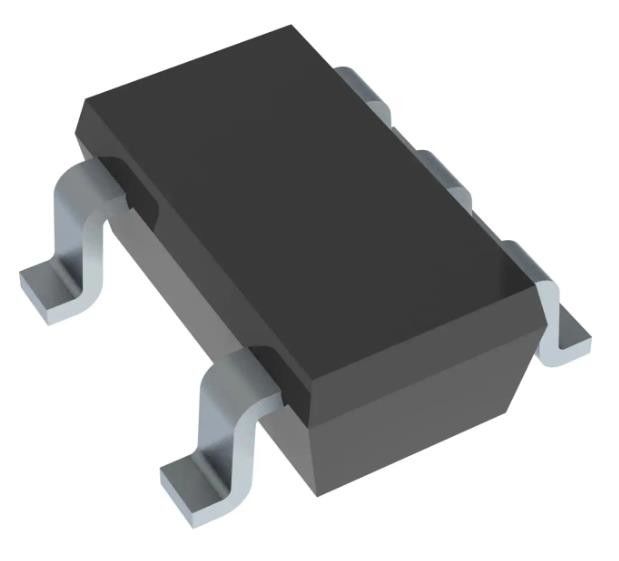

LP5907MFX-1.8/NOPB Linear Integrated Circuits Positive Fixed 1 Output 250mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP5907MFX-1.8/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 1.8V |
|---|---|---|---|
| Voltage - Output (Max): | - | Voltage Dropout (Max): | 0.25V @ 250mA |
| Current - Output: | 250mA | Current - Quiescent (Iq): | 25 µA |
| Current - Supply (Max): | 425 µA | PSRR: | 90dB ~ 60dB (100Hz ~ 100kHz) |
| High Light: | Positive Fixed Linear Integrated Circuits,250mA Linear Integrated Circuits,LP5907MFX-1.8/NOPB |
||
Product Description
LP5907MFX-1.8/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 250mA
IC REG LINEAR 1.8V 250MA SOT23-5
Specifications of LP5907MFX-1.8/NOPB
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - Linear |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 25 µA |
| Current - Supply (Max) | 425 µA |
| PSRR | 90dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LP5907 |
Features of LP5907MFX-1.8/NOPB
• Input voltage range: 2.2 V to 5.5 V
• Output voltage range: 1.2 V to 4.5 V
• Stable with 1-µF ceramic input and output capacitors
• No noise bypass capacitor required
• Remote output capacitor placement
• Thermal-overload and short-circuit protection
• –40°C to 125°C operating junction temperature
• Low output voltage noise: < 6.5 µVRMS
• PSRR: 82 dB at 1 kHz
• Output voltage tolerance: ±2%
• Very low IQ (enabled): 12 µA
• Low dropout: 120 mV (typical)
• Create a custom design using the LP5907 with the WEBENCH® Power Designer
Applications of LP5907MFX-1.8/NOPB
• Smartphones
• Tablets
• Communications equipment
• Digital still cameras
• Factory automation
Environmental & Export Classifications of LP5907MFX-1.8/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
