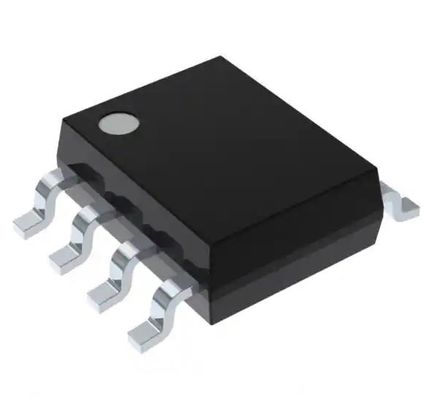

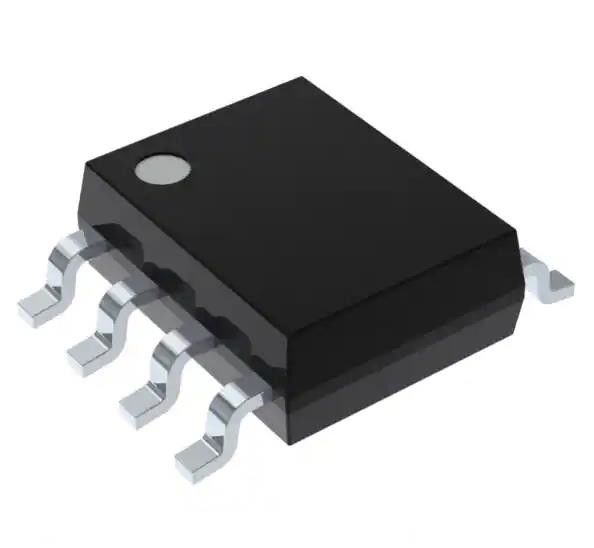

IS25WQ040-JNLE Memory Chip IC FLASH - NOR 4MBIT SPI 104MHZ 8SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IS25WQ040-JNLE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Size: | 4Mbit | Memory Organization: | 512K X 8 |
|---|---|---|---|
| Memory Interface: | SPI | Clock Frequency: | 104 MHz |
| Write Cycle Time - Word, Page: | 1ms | Voltage - Supply: | 1.65V ~ 1.95V |
| Operating Temperature: | -40°C ~ 105°C (TA) | Mounting Type: | Surface Mount |
Product Description
IS25WQ040-JNLE Memory Chip IC FLASH - NOR 4MBIT SPI 104MHZ 8SOIC
FLASH - NOR Memory IC 4Mbit SPI 104 MHz 8-SOIC
Specifications of IS25WQ040-JNLE
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Mfr | ISSI, Integrated Silicon Solution Inc |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 4Mbit |
| Memory Organization | 512K x 8 |
| Memory Interface | SPI |
| Clock Frequency | 104 MHz |
| Write Cycle Time - Word, Page | 1ms |
| Voltage - Supply | 1.65V ~ 1.95V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | IS25WQ040 |
Features of IS25WQ040-JNLE
*Industry Standard Serial Interface
- IS25WQ040: 4M-bit/ 512K-byte
- IS25WQ020: 2M-bit/ 256K-byte
- 256-bytes per Programmable Page Standard
- Standard SPI/Dual/Quad Multi-I/O SPI
* High Performance Serial Flash (SPI)
- 33MHz SPI Normal Read
- 104 MHz SPI/Dual/Quad Multi-I/O SPI
- 416 MHz equivalent Quad SPI
- 52MB/S Continuous Data Throughput
- Supports SPI Modes 0 and 3
- More than 100,000 Erase/Program Cycles(1)
- More than 20-year Data Retention
Introductions of IS25WQ040-JNLE
The IS25WQ040/020 (4M/2Mbit) Serial Flash memory offers a storage solution with flexibility and performance in a simplified pin count package. ISSI’s “Industry Standard Serial Interface” is for systems that have limited space, pins,and power. The IS25WQ040/020 is accessed through a 4-wire SPI Interface consisting of a Serial Data Input (SI), Serial Data Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins, which also serve as multi-function I/O pins in Dual and Quad modes (see pin descriptions). The IS25xQ series of Flash is ideal for code shadowing to RAM, execute in place (XIP) operations, and storing non-volatile data.
Environmental & Export Classifications of IS25WQ040-JNLE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0071 |
