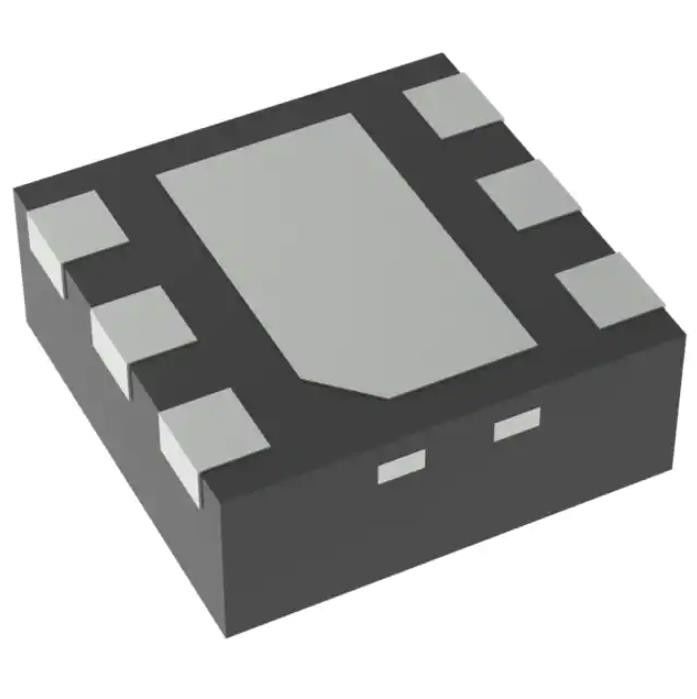

TPS72012DRVR POWER SWITCH IC REG LINEAR 1.2V 350MA 6WSON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS72012DRVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Output Configuration: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Fixed | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 4.5V | Voltage - Output (Min/Fixed): | 1.2V |
| Voltage Dropout (Max): | 0.2V @ 350mA | Current - Output: | 350mA |
| High Light: | TPS72012DRVR POWER SWITCH IC,IC REG LINEAR 1.2V 350MA,LINEAR 1.2V 350MA 6WSON |
||
Product Description
TPS72012DRVR POWER SWITCH ICS IC REG LINEAR 1.2V 350MA 6WSON
Linear Voltage Regulator IC Positive Fixed 1 Output 350mA 6-WSON (2x2)
Specifications of TPS65941111RWERQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 4.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 350mA |
| Current - Output | 350mA |
| Current - Quiescent (Iq) | 38 µA |
| Current - Supply (Max) | 80 µA |
| PSRR | 85dB ~ 50dB (10Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Base Product Number | TPS72012 |
Features of TPS65941111RWERQ1
• 350-mA High-Performance LDO
• Low Quiescent Current: 38 μA
• Excellent Load Transient Response: 15 mV for ILOAD 0 mA to 350 mA in 1 μs
• Excellent Line Transient Response: ΔVOUT 2 mV for ΔVBIAS 600 mV in 1 μs ΔVOUT 200 μV for ΔVIN 400 mV in 1 μs
• Low Noise: 48 μVRMS (10 Hz to 100 kHz)
• 80 dB VIN PSRR (10 Hz to 10 kHz)
• 70 dB VBIAS PSRR (10 Hz to 10 kHz)
• Fast Start-Up Time: 140 μs
• Built-In Soft-Start With Monotonic VOUT Rise and Start-Up Current Limited to 100 mA + ILOAD
• Overcurrent and Thermal Protection
• Low Dropout: 110 mV at ILOAD 350 mA
• Stable with 2.2-μF Output Capacitor
• Available in 1.33 mm × 0.96 mm DSBGA-5 and 2 mm × 2 mm SON-6 Packages
Applications of TPS65941111RWERQ1
• Digital Cameras
• Cellular Camera Phones
• Wireless LAN
• Handheld Products
Environmental & Export Classifications of TPS65941111RWERQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
