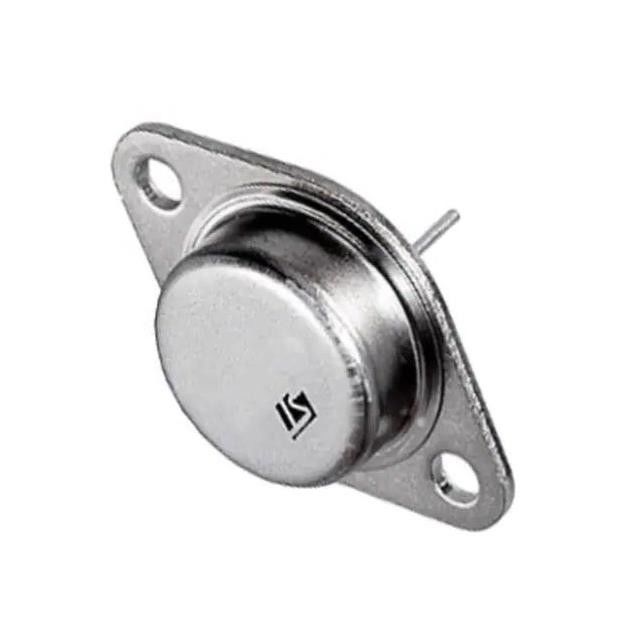

LM237K Linear Voltage Regulator IC Negative Adjustable 1 Output 1.5A TO-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD842KQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Negative | Output Type: | Adjustable |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | -1.2V | Voltage - Output (Max): | -37V |
| Voltage - Input (Max): | 40V | Operating Temperature: | -25°C ~ 125°C |
| High Light: | LM237K Linear Voltage Regulator IC,Negative Voltage Regulator IC,LM237K Voltage Regulator IC |
||
Product Description
LM237K Linear Voltage Regulator IC Negative Adjustable 1 Output 1.5A TO-3
IC REG LIN NEG ADJ 1.5A TO3
Specifications of LM237K
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | STMicroelectronics |
| Package | Bulk |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Voltage - Output (Max) | -37V |
| Current - Output | 1.5A |
| PSRR | 77dB ~ 60dB (120Hz) |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -25°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Base Product Number | LM237 |
Features of LM237K
• Output voltage adjustable down to VREF
• 1.5 A guaranteed output current
• 0.3%/V typical load regulation
• 0.01%/V typical line regulation
• Current limit constant with temperature
• Ripple rejection: 77 dB
• Standard 3-lead transistor packages
• Excellent thermal regulation: 0.002%/V
• 50 ppm/°C temperature coefficient
Descriptions of LM237K
The LM337 series are adjustable 3-terminal negative voltage regulators capable of supplying
in excess -1.5 A over a -1.2 to -37 V output voltage range. They are exceptionally easy to use
and require only two external resistors to set the output voltage. Further, both line and load
regulation are better than standard fixed regulators. Also, LM337 regulators are supplied in
standard transistor packages which are easily mounted and handled. In addition to higher
performance than fixed regulators, the LM337 series offer full overload protection available only
in integrated circuits. Included on the chip are current limit, thermal overload protection and safe
area protection. All overload protection circuitry remains fully functional even if the adjustment
terminal is disconnected.
Environmental & Export Classifications of LM237K
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
