20CDIP Programmable Logic Chips 54FCT574TDB 1 Element D Type 8 Bit Positive Edge
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CY54FCT245ATDMB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Elements: | 1 | Number Of Bits Per Element: | 8 |
|---|---|---|---|
| Max Propagation Delay @ V, Max CL: | 11ns @ 5V, 50pF | Current - Output High, Low: | 15mA, 48mA |
| Voltage - Supply: | 4.5V ~ 5.5V | Current - Quiescent (Iq): | 1 MA |
| Input Capacitance: | 10 PF | Operating Temperature: | -55°C ~ 125°C (TA) |
| High Light: | 20CDIP Programmable Logic Chips,54FCT574TDB,8 Bit Programmable Logic Chips |
||
Product Description

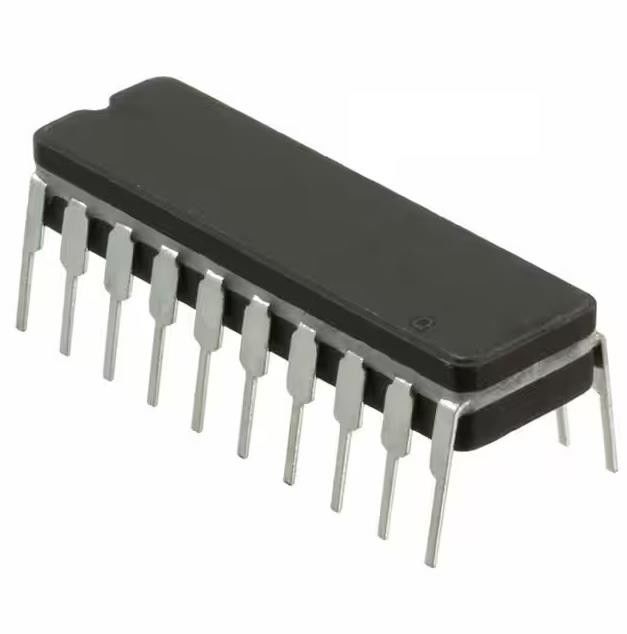

54FCT574TDB IC Logic Chip 1 Element D-Type 8 Bit Positive Edge 20-CDIP
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-CDIP
Specifications of 54FCT574TDB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tube |
| Product Status | Last Time Buy |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Max Propagation Delay @ V, Max CL | 11ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 15mA, 48mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 1 mA |
| Input Capacitance | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-CDIP |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Base Product Number | 54FCT574 |
Features of 54FCT574TDB
• Std., A, and C grades
• Low input and output leakage ≤1µA (max.)
• CMOS power levels
• True TTL input and output compatibility:
– VOH = 3.3V (typ.)
– VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Military product compliant to MIL-STD-883, Class B and DESC
listed (dual marked)
• Power off disable outputs permit "live insertion"
• Available in the following packages:
– Industrial: SOIC, QSOP
– Military: CERDIP, LCC
Descriptions of 54FCT574TDB
The FCT574T is an 8-bit register built using an advanced dual metal CMOS technology. These registers consist of eight D-type flip-flops with a
buffered common clock and buffered 3-state output control. When the output enable (OE) input is low, the eight outputs are enabled. When the OE input is high, the outputs are in the high-impedance state.
Input data meeting the set-up and hold time requirements of the D inputs is transferred to the Q outputs on the low-to-high transition of the clock input.
Environmental & Export Classifications of 54FCT574TDB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
