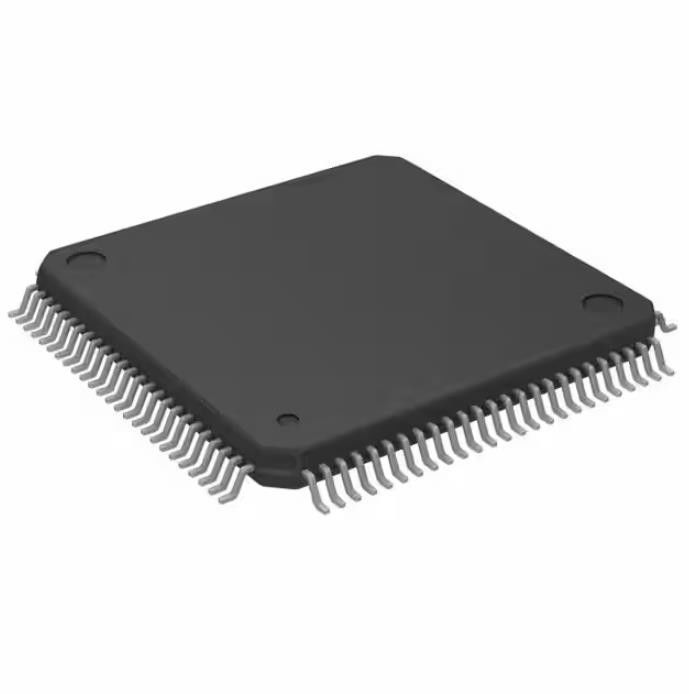

32BIT MCU RH850 F1KM 100PIN 3MB Programmable Logic Chips
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | R7F7016443AFP-C#KA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Renesas Electronics America Inc | Series: | Automotive, AEC-Q100, RH850/F1KM-S4-S4 |
|---|---|---|---|
| Package: | Tray | Product Status: | Not For New Designs |
| Digi-Key Programmable: | Not Verified | Core Processor: | RH850G3KH |
| Core Size: | 32-Bit Single-Core | Speed: | 240MHz |
| High Light: | 32BIT MCU RH850 F1KM,MCU RH850 F1KM 100PIN,3MB Programmable Logic Chips |
||
Product Description
R7F7016443AFP-C#KA1 Tantalum Chip Capacitor 32bit Mcu Rh850/F1km 100pin 3mb
RH850G3KH Automotive, AEC-Q100, RH850/F1KM-S4 Microcontroller IC 32-Bit Single-Core 240MHz 3MB (3M x 8) FLASH 100-LFQFP (14x14)
Specifications of R7F7016443AFP-C#KA1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Renesas Electronics America Inc |
| Series | Automotive, AEC-Q100, RH850/F1KM-S4 |
| Package | Tray |
| Product Status | Not For New Designs |
| Digi-Key Programmable | Not Verified |
| Core Processor | RH850G3KH |
| Core Size | 32-Bit Single-Core |
| Speed | 240MHz |
| Connectivity | CANbus, CSI, I²C, LINbus, SPI, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 75 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 16x10b, 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LFQFP (14x14) |
| Base Product Number | R7F7016443 |
FEATURES of R7F7016443AFP-C#KA1
• The RX72N 32-bit MCU is a high-performance product that operates at 240 MHz with a line up max of 224 pins, so you can use many functions without duplicating pins
• Performs TFT display processing that requires high performance, and high-quality audio through the synchronous serial interface (SSI) with one chip
• The HS3004 sensor measures the temperature inside the equipment and helps detect abnormalities
• RX flagship MCU with highest performance
• RXv3 core and high-performance operation at 240 MHz
• 120 MHz RXv2 core MCU
• Large ROM/RAM, enhanced security, connectivity and HMI
• Wide VIN dual-standard Buck regulator with 3 A / 3 A continuous output current
• Efficient asynchronous Buck regulator
• Good for network and communication equipment, industrial control, point-of-load regulators
• Relative humidity and temperature sensor
• High-accuracy humidity and temperature sensing for environmental monitoring
Applications of R7F7016443AFP-C#KA1
This reference design by Renesas is used for a ticket machine used in train stations and utilizes a TFT display for customers to purchase tickets. The reference design also features voice guidance via a speaker and can detect abnormalities inside the device with a temperature sensor. When updating the firmware of this application, this can be rewritten using a USB. Two RX65N 32-bit microcontrollers (MCUs) are used to recognize bills and coins.
Environmental & Export Classifications of R7F7016443AFP-C#KA1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| HTSUS | 0000.00.0000 |
