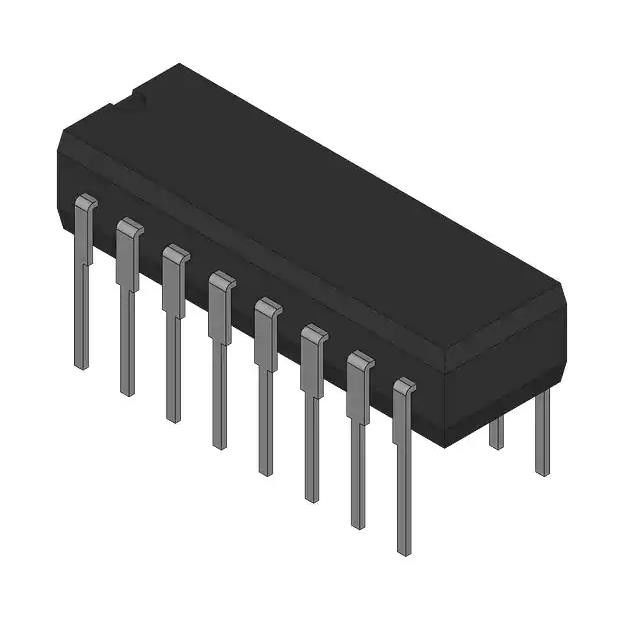

SN54LS193J 4 BIT SYNCHRONOUS Counter IC UP DOW 32 MHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN54LS193J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| TYPICAL MAXIMUM COUNT FREQUENCY: | 32 MHz | TYPICAL POWER DISSIPATION: | 95mW |
|---|---|---|---|
| Low Power Consumption: | 80-µA Max ICC | Operation Temperature: | −55°C To 125°C |
| Low Input Current: | 1 µA Max | Supply Voltage Range, VCC: | 7 V |
| Input Voltage Range: | 7 V | Storage Temperature Range, Tstg: | −65°C To 150°C |
| High Light: | SN54LS193J,4 BIT SYNCHRONOUS Counter IC,32 MHz SYNCHRONOUS Counter IC |
||
Product Description
SN54LS193J SYNCHRONOUS 4-BIT UP/DOW Counter IC Element Bit Logic Dividers
54HC393 DUAL 4-BIT BINARY COUNTE
Specifications of SNJ54HC393J
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Counters, Dividers | |
| Mfr | Texas Instruments |
| Series | * |
| Package | Bulk |
| Product Status | Active |
| Base Product Number | 54LS193 |
Features of SNJ54HC393J
● Cascading Circuitry Provided Internally
● Synchronous Operation
● Individual Preset to Each Flip-Flop
● Fully lndependent Clear Input
| TYPES |
TYPICAL MAXIMUM COUNT FREQUENCY |
TYPICAL POWER DISSIPATION |
| '192,'193 | 32 MHz | 325mW |
| 'LS192,'LS193 | 32 MHz | 95mW |
Descriptions of SNJ54HC393J
The outputs of the four master-slave flip-flops are trig gered by a low-to-high-level transition of either count (clock) input.
The direction of counting is determined by which count input is pulsed while the other count input is high.
Environmental & Export Classifications of SNJ54HC393J
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
