14TSSOP Inverter Logic Gate IC 74HC32PW 118 4CH 2-INP 4 Channel
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 74HC32PW,118 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | OR Gate | Number Of Circuits: | 4 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 2V ~ 6V |
| Current - Quiescent (Max): | 2 µA | Current - Output High, Low: | 5.2mA, 5.2mA |
| Input Logic Level - Low: | 0.5V ~ 1.8V | Input Logic Level - High: | 1.5V ~ 4.2V |
| High Light: | 14TSSOP Inverter Logic Gate IC,74HC32PW 118 4CH 2-INP,Inverter Logic Gate IC 74HC32PW |
||
Product Description

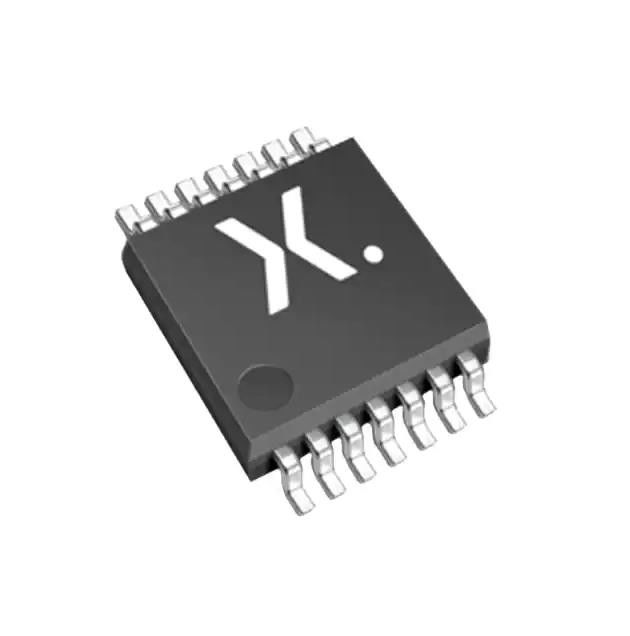

74HC32PW,118 IC GATE OR 4CH 2-INP 14TSSOP Logic Gates and Inverters
OR Gate IC 4 Channel 14-TSSOP
Specifications of 74HC32PW,118
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Nexperia USA Inc. |
| Series | 74HC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74HC32 |
Features of 74HC32PW,118
• Wide supply voltage range from 2.0 to 6.0 V
• CMOS low power dissipation
• High noise immunity
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Complies with JEDEC standards:
• JESD8C (2.7 V to 3.6 V)
• JESD7A (2.0 V to 6.0 V)
• Input levels:
• For 74HC32: CMOS level
• For 74HCT32: TTL level
• Symmetrical output impedance
• Balanced propagation delays
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C
General description of 74HC32PW,118
The 74HC32; 74HCT32 is a quad 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Environmental & Export Classifications of 74HC32PW,118
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
