TLC3702MDR Emmc Memory Chip Ic Comparator 2 Gen Pur 8soic 296-48688-1-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLC3702MDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | General Purpose |
|---|---|---|---|
| Number Of Elements: | 2 | Output Type: | CMOS, Push-Pull, TTL |
| Voltage - Supply, Single/Dual (±): | 4V ~ 16V | Voltage - Input Offset (Max): | 5mV @ 10V |
| Current - Input Bias (Max): | 5pA @ 5V | Current - Output (Typ): | 20mA |
Product Description
TLC3702MDR Emmc Memory Chip Ic Comparator 2 Gen Pur 8soic 296-48688-1-Nd

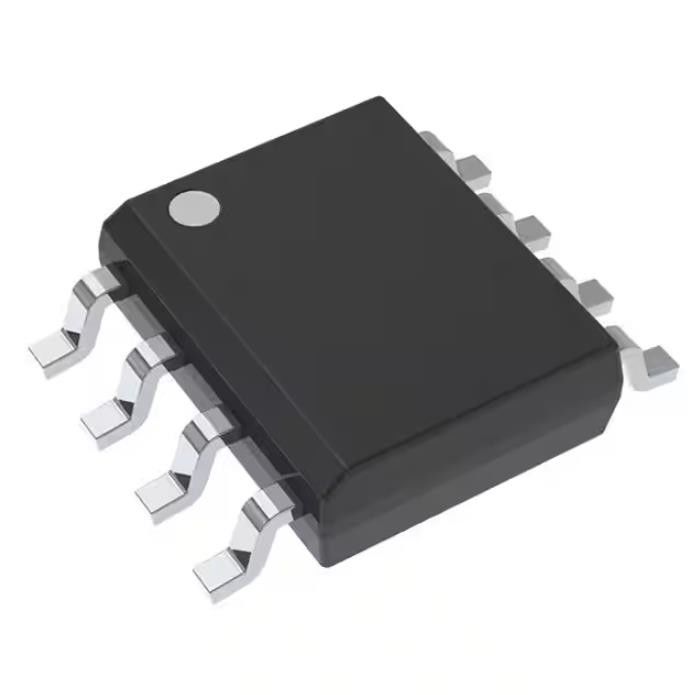

Comparator General Purpose CMOS, Push-Pull, TTL 8-SOIC
Specifications of TLC3702MDR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Texas Instruments |
| Series | LinCMOS™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 2 |
| Output Type | CMOS, Push-Pull, TTL |
| Voltage - Supply, Single/Dual (±) | 4V ~ 16V |
| Voltage - Input Offset (Max) | 5mV @ 10V |
| Current - Input Bias (Max) | 5pA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 90µA |
| CMRR, PSRR (Typ) | 84dB CMRR |
| Propagation Delay (Max) | 4.5µs |
| Hysteresis | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TLC3702 |
Features of TLC3702MDR
• Push-Pull CMOS Output Drives Capacitive
Loads Without Pullup Resistor,
IO = ± 8 mA
• Very Low Power . . . 100 μW Typ at 5 V
• Fast Response Time ...tPLH = 2.7 μs Typ
• With 5-mV Overdrive
• Single-Supply Operation . . . 3 V to 16 V TLC3702M . . . 4 V to 16 V
• On-Chip ESD Protection
Applications of TLC3702MDR
The TLC3702 consists of two independent micropower voltage comparators designed to operate from a single supply and be compatible with modern HCMOS logic systems. They are functionally similar to the LM339 but use onetwentieth of the power for similar response times. The push-pull CMOS output stage drives capacitive loads directly without a powerconsuming pullup resistor to achieve the stated response time. Eliminating the pullup resistor not only reduces power dissipation, but also saves board space and component cost. The output stage is also fully compatible with TTL requirements.
