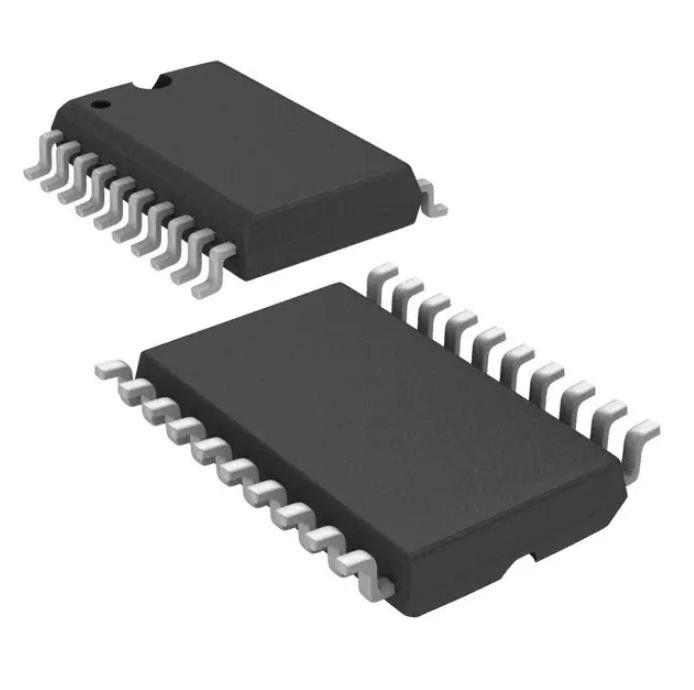

TLC1543QDWR 10 Bit Analog To Digital Converter 11 Input 1 SAR 20 SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLC1543QDWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Bits: | 10 |
|---|---|---|---|
| Sampling Rate (Per Second): | 38k | Number Of Inputs: | 11 |
| Input Type: | Single Ended | Data Interface: | SPI |
| Configuration: | MUX-S/H-ADC | Ratio - S/H:ADC: | 1:01 |
| High Light: | TLC1543QDWR,10 Bit Analog To Digital Converter,20 SOIC Analog To Digital Converter |
||
Product Description
TLC1543QDWR Emmc Memory Chip Ic Adc 10bit Sar 20soic 296-42694-1-ND
10 Bit Analog to Digital Converter 11 Input 1 SAR 20-SOIC
Specifications of TLC1543QDWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 38k |
| Number of Inputs | 11 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | TLC1543 |
Features of TLC1543QDWR
• 10-Bit Resolution A/D Converter
• 11 Analog Input Channels
• Three Built-In Self-Test Modes
• Inherent Sample-and-Hold Function
• Total Unadjusted Error: ±1LSB Max
• On-Chip System Clock
• End-of-Conversion (EOC) Output
• Terminal Compatible With TLC542
• CMOS Technology
Applications of TLC1543IDWR
The TLC1542C, TLC1542I, TLC1542M, TLC1542Q, TLC1543C, TLC1543I, and TLC1543Q are CMOS 10-bit switched-capacitor successive-approximation analog-to-digital converters. These devices have three inputs and a 3-state output [chip select (CS), input-output clock (I/O CLOCK), address input (ADDRESS), and data output (DATA OUT)] that provide a direct 4-wire interface to the serial port of a host processor. These devices allowhigh-speed data
