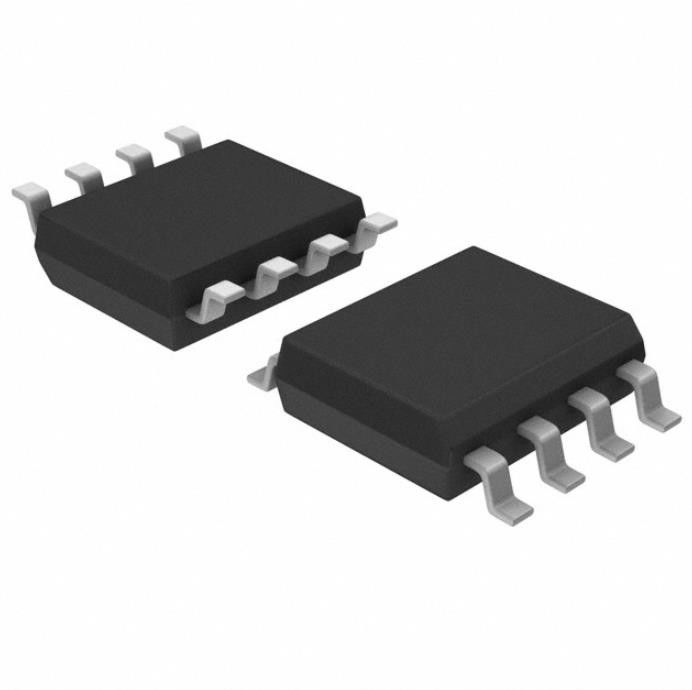

TJA1042T/1J Emmc Memory Chip Ic Transceiver Half 1/1 8so 568-11890-6-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TJA1042T/1J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Transceiver |
|---|---|---|---|
| Protocol: | CANbus | Number Of Drivers/Receivers: | 1/1 |
| Duplex: | Half | Receiver Hysteresis: | 120 MV |
| Data Rate: | 5Mbps | Voltage - Supply: | 4.5V ~ 5.5V |
Product Description
TJA1042T/1J Emmc Memory Chip Ic Transceiver Half 1/1 8so 568-11890-6-ND
1/1 Transceiver Half CANbus 8-SO
Specifications of TJA1042T/1J
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | NXP USA Inc. |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 120 mV |
| Data Rate | 5Mbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | TJA1042 |
Features of TJA1042T/1J
• Fully ISO 11898-2:2016, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
• Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
• Suitable for 12 V and 24 V systems
• Low Electromagnetic Emission (EME) and high Electromagnetic Immunity (EMI),according to proposed EMC Standards IEC 62228-3 and SAE J2962-2
• Variants with a VIO pin allow for direct interfacing with 3.3 V to 5 V microcontrollers
• Shorter propagation delay on the TJA1042B and TJA1042C variants supports larger network topologies (see Table 8)
• SPLIT voltage output on TJA1042T and TJA1042CT for stabilizing the recessive bus level
• Both VIO and non-VIO variants are available in SO8 and leadless HVSON8 (3.0 mm × 3.0 mm) packages; HVSON8 with improved Automated Optical Inspection (AOI) capability
Applications of TJA1042T/1J
• High ESD handling capability on the bus pins (±8 kV)
• High voltage robustness on CAN pins (±58 V)
• Bus pins protected against transients in automotive environments
• Thermally protected
Environmental & Export Classifications of TJA1042T/1J
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
