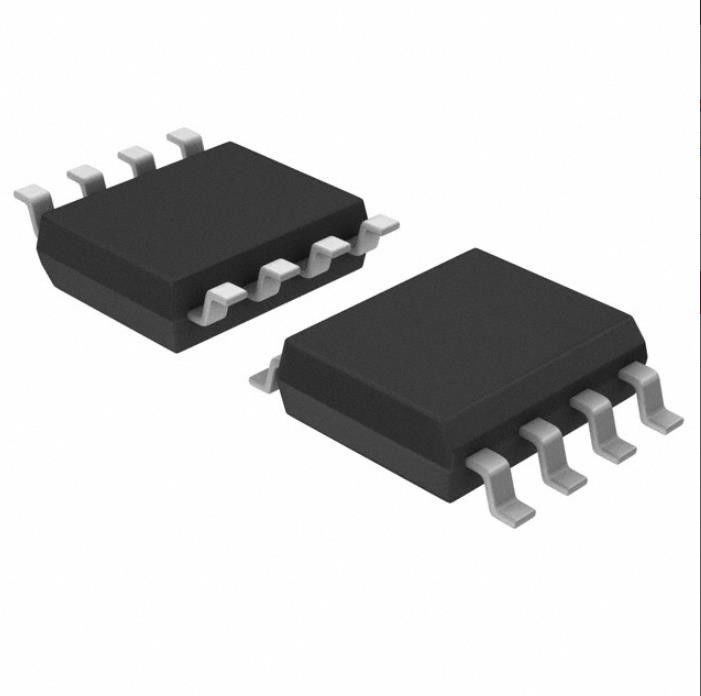

TJA1040T/CM Emmc Memory Chip Ic Transceiver Half 1/1 8so 568-10289-1-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TJA1040T/CM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Transceiver |
|---|---|---|---|
| Protocol: | CANbus | Number Of Drivers/Receivers: | 1/1 |
| Duplex: | Half | Receiver Hysteresis: | 70 MV |
| Mounting Type: | Surface Mount | Voltage - Supply: | 4.75V ~ 5.25V |
Product Description
TJA1040T/CM Emmc Memory Chip Ic Transceiver Half 1/1 8so 568-10289-1-ND
1/1 Transceiver Half CANbus 8-SO
Specifications of TJA1040T/CM
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | NXP USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 70 mV |
| Data Rate | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | TJA1040 |
Features of TJA1040T/CM
• Fully compatible with the ISO 11898 standard
• High speed (up to 1 MBaud)
• Very low-current standby mode with remote wake-up capability via the bus
• Very low ElectroMagnetic Emission (EME)
• Differential receiver with high common-mode range for ElectroMagnetic Immunity (EMI)
• Transceiver in unpowered state disengages from the bus (zero load)
• Input levels compatible with 3.3 V and 5 V devices
• Voltage source for stabilizing the recessive bus level if split termination is used (further improvement of EME)
• At least 110 nodes can be connected
• Transmit Data (TXD) dominant time-out function
• Bus pins protected against transients in auto motiveenvironments
• Bus pins and pin SPLIT short-circuit proof to battery andground
• Thermally protected.
Applications of TJA1040T/CM
• An ideal passive behaviour when supply voltage is off
• A very low-current standby mode with remote wake-up capability via the bus.
Environmental & Export Classifications of TJA1040T/CM
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
