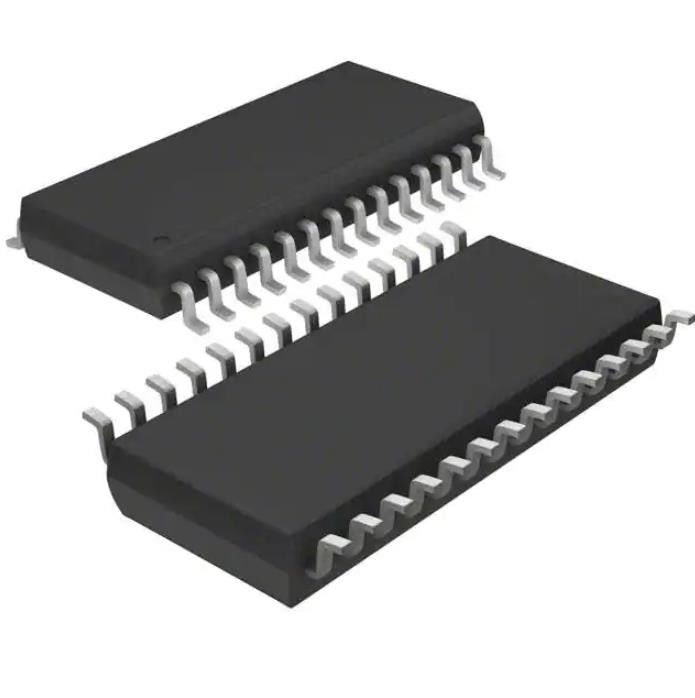

THS5661AIPWR Emmc Memory Chip Ic Dac 12bit A-Out 28tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | THS5661AIPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Number Of Bits: | 12 | Number Of D/A Converters: | 1 |
| Settling Time: | 35ns (Typ) | Output Type: | Current - Unbuffered |
| Differential Output: | Yes | Data Interface: | Parallel |
Product Description
THS5661AIPWR Emmc Memory Chip Ic Dac 12bit A-Out 28tssop
12 Bit Digital to Analog Converter 1 28-TSSOP
Specifications of THS5661AIPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | CommsDAC™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 35ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 5.5V |
| Voltage - Supply, Digital | 3V ~ 5.5V |
| INL/DNL (LSB) | ±0.75, ±0.5 |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | THS5661 |
Features of THS5661AIPWR
• Member of the Pin-Compatible
CommsDAC Product Family
• 125 MSPS Update Rate
• 12-Bit Resolution
• Spurious Free Dynamic Range (SFDR) to
Nyquist at 40 MHz Output: 60 dBc
• 1 ns Setup/Hold Time
• Differential Scalable Current Outputs: 2 mAto 20 mA
• On-Chip 1.2 V Reference
• 3 V and 5 V CMOS-Compatible Digital
Interface
• Straight Binary or Twos Complement Input
• Power Dissipation: 175 mW at 5 V, Sleep
Mode: 25 mW at 5 V
• Package: 28-Pin SOIC and TSSOP
Applications of THS5661AIPWR
The THS5661A is a 12-bit resolution digital-to-analog converter (DAC) specifically optimized for digital data transmission in wired and wireless communication systems. The 12-bit DAC is a member of the CommsDAC series of high-speed, low-power CMOS digital-to-analog converters. The CommsDAC family consists of pin compatible 14-, 12-, 10-, and 8-bit DACs. All devices of fer identical interface options, small outline package, and pinout. The THS5661A offers superior ac and dc performance while supporting update rates up to 125 MSPS.
Environmental & Export Classifications of THS5661AIPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
