SY58011UMG Emmc Memory Chip Ic Clk Buffer 1:2 8ghz 16mlf 576-2047-5-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SY58011UMG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Ratio - Input:Output: | 1:02 |
|---|---|---|---|
| Differential - Input:Output: | Yes/Yes | Input: | CML, LVDS, LVPECL |
| Output: | CML | Frequency - Max: | 8 GHz |
| Operating Temperature: | -40°C ~ 85°C (TA) | ||
Product Description
SY58011UMG Emmc Memory Chip Ic Clk Buffer 1:2 8ghz 16mlf 576-2047-5-Nd

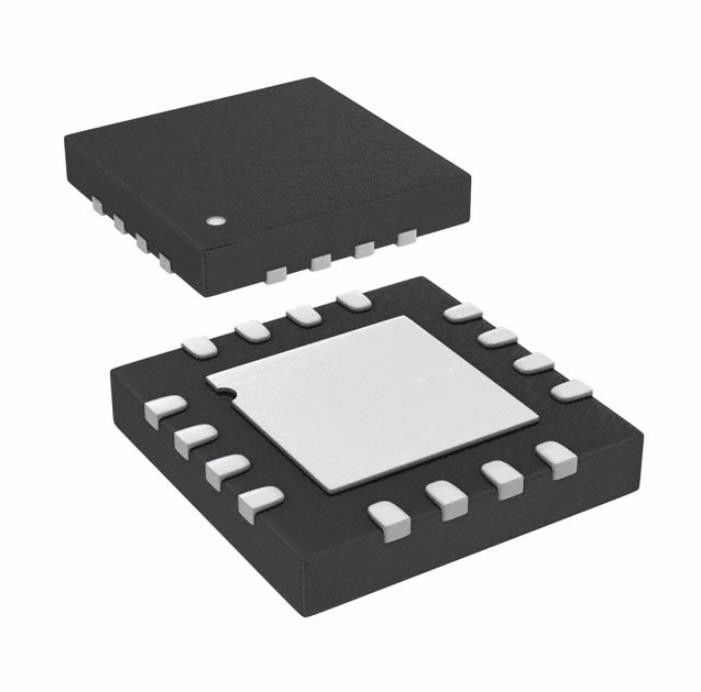

Clock Fanout Buffer (Distribution), Translator IC 1:2 8 GHz 16-VFQFN Exposed Pad, 16-MLF®
Specifications of SY58011UMG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Buffers, Drivers | |
| Mfr | Microchip Technology |
| Series | Precision Edge® |
| Package | Tube |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Translator |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:02 |
| Differential - Input:Output | Yes/Yes |
| Input | CML, LVDS, LVPECL |
| Output | CML |
| Frequency - Max | 8 GHz |
| Voltage - Supply | 2.375V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad, 16-MLF® |
| Supplier Device Package | 16-MLF® (3x3) |
| Base Product Number | SY58011 |
Features of SY58011UMG
• Precision 1:2, 400mV CML fanout buffer
• Low jitter performance:
• 49fsrms phase jitter (typ)Guaranteed AC performance over temperature/voltage:
• > 7GHz fmax clock
• < 60ps t/t, times
• < 250ps tpd
• < 15ps max. skew
• Accepts an input signal as low as 100mV
• Unique input termination and V- pin accepts DCcoupled and AC-coupled differentialinputs: LVPECL, LVDS, and CML
• Low jitter performance:
• 49fsrms phase jitter (typ)Guaranteed AC performance over temperature/voltage:
• > 7GHz fmax clock
• < 60ps t/t, times
• < 250ps tpd
• < 15ps max. skew
• Accepts an input signal as low as 100mV
• Unique input termination and V- pin accepts DCcoupled and AC-coupled differentialinputs: LVPECL, LVDS, and CML
• 50ohms source terminated CML outputs
• Power supply 2.5V +5% and 3.3V +10%
• Industrial temperature range: -40C to +85°C
• Available in 16-pin (3mm * 3mm) QFN package
Applications of SY58011UMG
• AII SONET and GigE clock distribution
• Fibre Channel clock and data distribution
• Backplanes
• Data distribution: OC-48, OC-48+FEC,XAUI
• Backplanes
• Data distribution: OC-48, OC-48+FEC,XAUI
• High-end, low skew, multiprocessor synchronous clock distribution
Environmental & Export Classifications of SY58011UMG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
