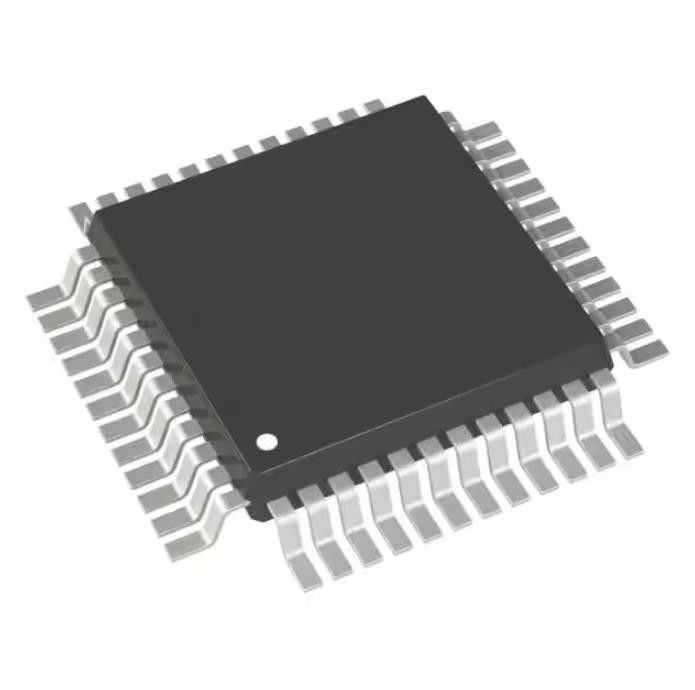

STM8L151K4T6TR Emmc Memory Chip Ic Mcu 8bit 16kb Flash 32lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STM8L151K4T6TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Core Processor: | STM8 | Core Size: | 8-Bit |
| Speed: | 16MHz | Connectivity: | I²C, IrDA, SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT | Number Of I/O: | 30 |
Product Description
STM8L151K4T6TR Emmc Memory Chip Ic Mcu 8bit 16kb Flash 32lqfp
STM8 STM8L EnergyLite Microcontroller IC 8-Bit 16MHz 16KB (16K x 8) FLASH 32-LQFP (7x7)
Specifications of STM8L151K4T6TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM8L EnergyLite |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I²C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT |
| Number of I/O | 30 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 22x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-LQFP (7x7) |
| Base Product Number | STM8 |
Features of STM8L151K4T6TR
• Operating conditions
– Operating power supply range 1.8 V to 3.6 V (down to 1.65 V at power down)
– Temp. range: - 40 °C to 85, 105 or 125 °C
• Low power features
– 5 low power modes: Wait, Low power run (5.1 µA), Low power wait (3 µA), Active-halt with full RTC (1.3 µA), Halt (350 nA)
– Consumption: 195 µA/MHz + 440 µA
– Ultra-low leakage per I/0: 50 nA
– Fast wakeup from Halt: 4.7 µs
• Advanced STM8 core
– Harvard architecture and 3-stage pipeline
– Max freq. 16 MHz, 16 CISC MIPS peak
– Up to 40 external interrupt sources
• Reset and supply management
– Low power, ultra-safe BOR reset with
5 selectable thresholds
– Ultra-low-power POR/PDR
– Programmable voltage detector (PVD)
• Clock management
– 1 to 16 MHz crystal oscillator
– 32 kHz crystal oscillator
– Internal 16 MHz factory-trimmed RC
– Internal 38 kHz low consumption RC
– Clock security system
• Low power RTC
– BCD calendar with alarm interrupt
– Auto-wakeup from Halt w/ periodic interrupt
• LCD: up to 4x28 segments w/ step-up converter
• Memories
– Up to 32 Kbytes of Flash program memory and 1 Kbyte of data EEPROM with ECC, RWW
– Flexible write and read protection modes
– Up to 2 Kbytes of RAM
• DMA
– 4 channels; supported peripherals: ADC, DAC, SPI, I2C, USART, timers
Applications of STM8L151K4T6TR
• Harvard architecture
• 3-stage pipeline
• 32-bit wide program memory bus - single cycle fetching most instructions
• X and Y 16-bit index registers - enabling indexed addressing modes with or without offset and read-modify-write type data manipulations
• 8-bit accumulator
• 24-bit program counter - 16 Mbyte linear memory space
• 16-bit stack pointer - access to a 64 Kbyte level stack
• 8-bit condition code register - 7 condition flags for the result of the last instruction
Environmental & Export Classifications of STM8L151K4T6TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
