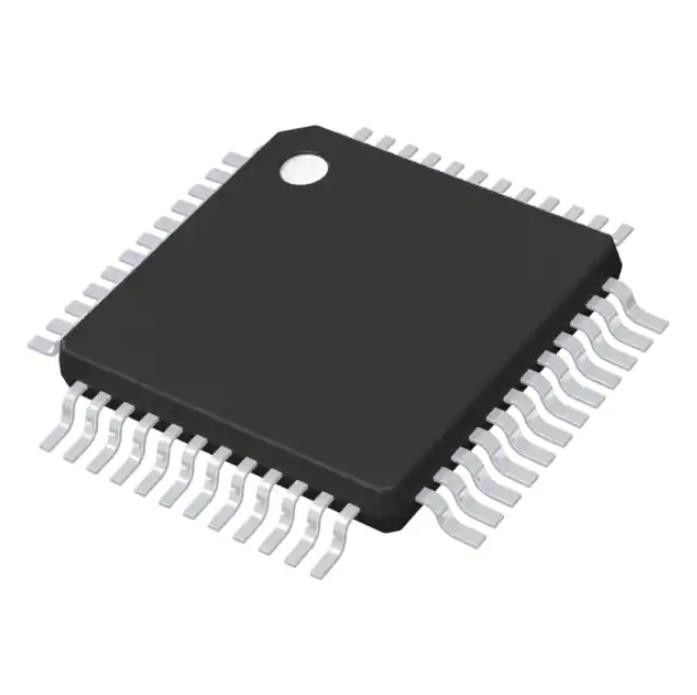

STM32G0B1CEU6TR Emmc Memory Chip Ic Mcu 32bit 64kb Flash 48lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STM32G0B1CEU6TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | STMicroelectronics | Series: | STM32L1 |
|---|---|---|---|
| Package: | Tape & Reel (TR) | Product Status: | Active |
| Digi-Key Programmable: | Not Verified | Core Processor: | ARM® Cortex®-M3 |
| Core Size: | 32-Bit Single-Core | Speed: | 32MHz |
Product Description
STM32G0B1CEU6TR Emmc Memory Chip Ic Mcu 32bit 64kb Flash 48lqfp
ARM® Cortex®-M3 STM32L1 Microcontroller IC 32-Bit Single-Core 32MHz 64KB (64K x 8) FLASH 48-LQFP (7x7)
Specifications of STM32G0B1CEU6TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM32L1 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Base Product Number | STM32L151 |
Features of STM32G0B1CEU6TR
• Ultra-low-power platform
– 1.65 V to 3.6 V power supply
– -40°C to 105°C temperature range
– 0.28 µA Standby mode (3 wakeup pins)
– 1.11 µA Standby mode + RTC
– 0.44 µA Stop mode (16 wakeup lines)
– 1.38 µA Stop mode + RTC
– 10.9 µA Low-power Run mode
– 185 µA/MHz Run mode
– 10 nA ultra-low I/O leakage
– < 8 µs wakeup time
• Core: ARM® Cortex®-M3 32-bit CPU
– From 32 kHz up to 32 MHz max
– 1.25 DMIPS/MHz (Dhrystone 2.1)
– Memory protection unit
• Reset and supply management
– Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
– Ultra-low-power POR/PDR
– Programmable voltage detector (PVD)
• Clock sources
– 1 to 24 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– High Speed Internal 16 MHz factorytrimmed RC (+/- 1%)
– Internal low-power 37 kHz RC
– Internal multispeed low-power 65 kHz to 4.2 MHz
– PLL for CPU clock and USB (48 MHz)
• Pre-programmed bootloader
– USART supported
• Development support
– Serial wire debug supported
– JTAG and trace supported
• Up to 83 fast I/Os (73 I/Os 5V tolerant), all mappable on 16 external interrupt vectors
• Memories
– Up to 128 Kbytes Flash memory with ECC
– Up to 32 Kbytes RAM
– Up to 4 Kbytes of true EEPROM with ECC
– 80-byte backup register
Applications of STM32G0B1CEU6TR
• The version with BOR activated at power-on operates between 1.8 V and 3.6 V.
• The other version without BOR operates between 1.65 V and 3.6 V.
Environmental & Export Classifications of STM32G0B1CEU6TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
