STM32F100VBT6BTR Emmc Memory Chip Ic Mcu 32bit 128kb Flash 100lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STM32F100VBT6BTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Core Processor: | ARM® Cortex®-M3 | Core Size: | 32-Bit Single-Core |
| Speed: | 24MHz | Connectivity: | I²C, IrDA, LINbus, SPI, UART/USARTSART |
| Peripherals: | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT | Number Of I/O: | 80 |
Product Description

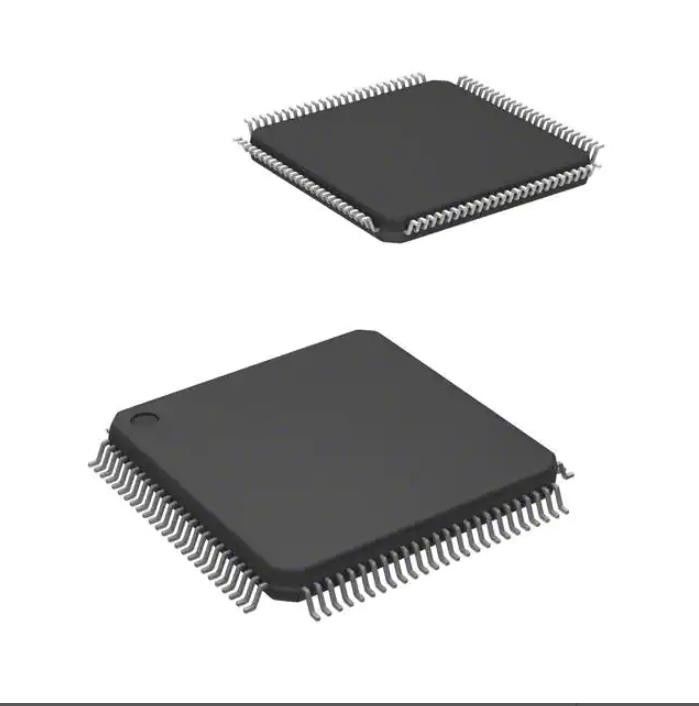

STM32F100VBT6BTR Emmc Memory Chip Ic Mcu 32bit 128kb Flash 100lqfp
ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit Single-Core 24MHz 128KB (128K x 8) FLASH 100-LQFP (14x14)
Specifications of STM32F100VBT6BTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM32F1 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 80 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) |
| Base Product Number | STM32F100 |
Features of STM32F100VBT6BTR
• Core: ARM® 32-bit Cortex®-M3 CPU
– 24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
– Single-cycle multiplication and hardware division
• Memories
– 16 to 128 Kbytes of Flash memory
– 4 to 8 Kbytes of SRAM
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR and programmable voltage detector (PVD)
– 4-to-24 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• Debug mode
– Serial wire debug (SWD) and JTAG interfaces
• DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs, I 2Cs, USARTs and DACs
• 1 × 12-bit, 1.2 µs A/D converter (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Temperature sensor
• 2 × 12-bit D/A converters
• Up to 80 fast I/O ports
– 37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
• Up to 12 timers
– Up to three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter
– 16-bit, 6-channel advanced-control timer: up to 6 channels for PWM output, dead time generation and emergency stop
– One 16-bit timer, with 2 IC/OC, 1 OCN/PWM, dead-time generation and emergency stop
– Two 16-bit timers, each with IC/OC/OCN/PWM, dead-time generation and emergency stop
– 2 watchdog timers (Independent and Window)
– SysTick timer: 24-bit downcounter
– Two 16-bit basic timers to drive the DAC
• Up to 8 communications interfaces
– Up to two I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
– Up to 2 SPIs (12 Mbit/s)
– Consumer electronics control (CEC) interface
• CRC calculation unit, 96-bit unique ID
• ECOPACK® packages
Applications of STM32F100VBT6BTR
The regulator has three operation modes: main (MR), low power (LPR) and power down.
• MR is used in the nominal regulation mode (Run)
• LPR is used in the Stop mode
• Power down is used in Standby mode: the regulator output is in high impedance: the kernel circuitry is powered down, inducing zero consumption (but the
contents of the registers and SRAM are lost) This regulator is always enabled after reset. It is disabled in
Standby mode, providing high impedance output.
Environmental & Export Classifications of STM32F100VBT6BTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
