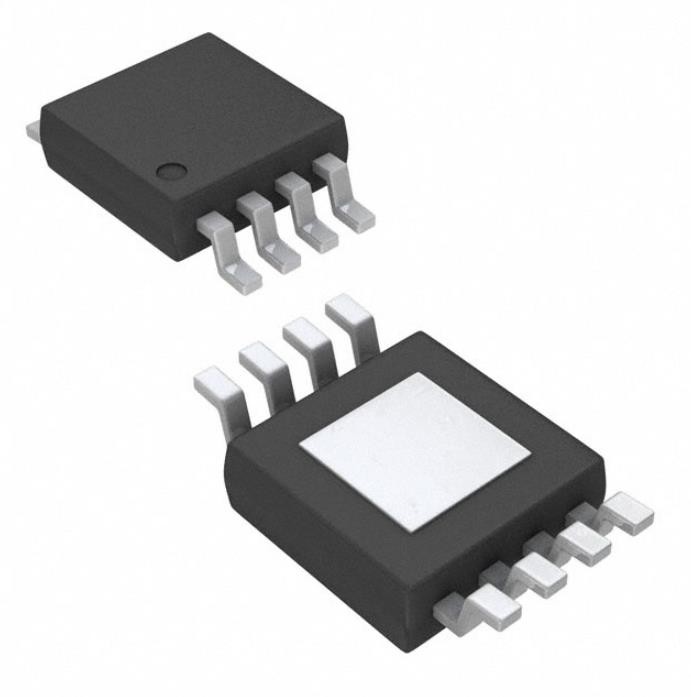

RT7258GSP IC Reg Buck Adjustable 8A 8SOP Switching Regulator IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RT7258GSP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 24V |
| High Light: | RT7258GSP IC Reg,IC Reg Buck Adjustable 8A 8SOP,8A 8SOP Switching Regulator IC |
||
Product Description
Specifications of RT7258GSP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Richtek USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 0.808V |
| Voltage - Output (Max) | 15V |
| Current - Output | 8A |
| Frequency - Switching | 600kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOP-EP |
| Base Product Number | RT7258 |
FEATURES of RT7258GSP
• 4.5V to 24V Input Voltage Range
• 8A Output Current
• 45mΩ Internal High Side N-MOSFET
• Current Mode Control
• 600kHz Switching Frequency
• Adjustable Output from 0.808V to 15V
• Up to 95% Efficiency
• Internal Compensation
• Stable with Ceramic Capacitors
• Synchronous External Clock : 300kHz to 1.5MHz
• Cycle-by-Cycle Current Limit
• Input Under Voltage Lockout
• Output Under Voltage Protection
• Power Good Indicator
• Thermal Shutdown Protection
• RoHS Compliant and Halogen Free
Applications of RT7258GSP
• Point of Load Regulator in Distributed Power System
• Digital Set top Boxes
• Personal Digital Recorders
• Broadband Communications
• Flat Panel TVs and Monitors
Environmental & Export Classifications of RT7258GSP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
