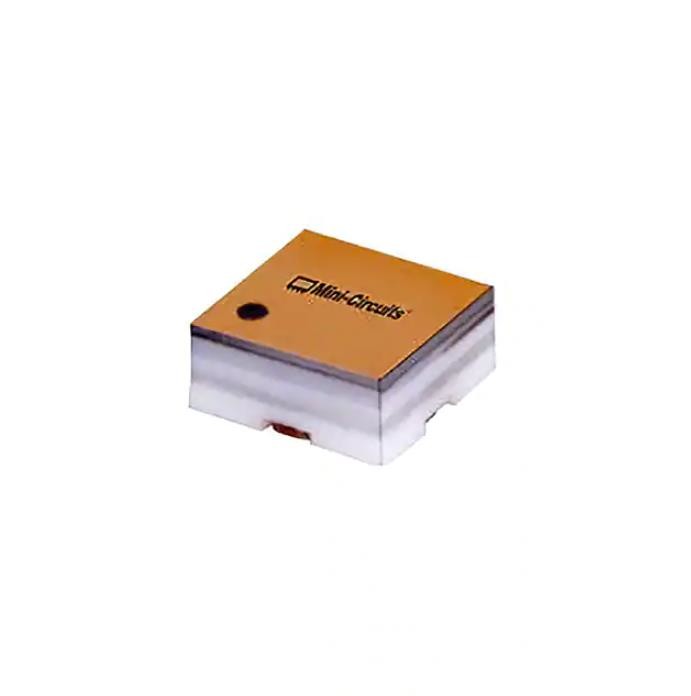

RCAT-10+ Tantalum Chip Capacitor Rf Attenuator 10db 50ohm 4smd,
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RCAT-10+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Obsolete | Attenuation Value: | 10dB |
|---|---|---|---|
| Frequency Range: | 0 Hz ~ 20 GHz | Power (Watts): | 2W |
| Impedance: | 50 Ohms | Package / Case: | 4-SMD, No Lead |
| Mfr: | Mini-Circuits | Series: | RCAT |
Product Description
RCAT-10+ Tantalum Chip Capacitor Rf Attenuator 10db 50ohm 4smd,
RF Attenuators 10dB 0 Hz ~ 20 GHz 50 Ohms 2W 4-SMD, No Lead
Specifications of RCAT-10+
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| Attenuators | |
| Mfr | Mini-Circuits |
| Series | RCAT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Attenuation Value | 10dB |
| Frequency Range | 0 Hz ~ 20 GHz |
| Power (Watts) | 2W |
| Impedance | 50 Ohms |
| Package / Case | 4-SMD, No Lead |
FEATURES of RCAT-10+
• fixed value, absorptive device
• wide bandwidth, DC-20 GHz
• excellent attenuation accuracy & flatness
• miniature size 2.25 mm x 2.25 mm x 1.1 mm
• ceramic, hermetic, nitrogen filled
• aqueous washable
Applications of RCAT-10+
RCAT-10+ (RoHS compliant) is a wideband fixed attenuator with excellent attenuation accuracy and flatness. It can handle up to 2W. The integrated circuits comprising of thin film resistors is bonded in an optimized multi layer integrated LTCC substrate, and then hermetically sealed under a controlled nitrogen atmosphere with gold-plated covers and eutectic AuSn solder. These attenuators are capable of meeting MIL requirements for gross leak, fine leak, thermal shock, vibration, acceleration, mechanical shock, and HTOL. The testing can be done if requested.
Environmental & Export Classifications of RCAT-10+
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8533.21.0020 |
