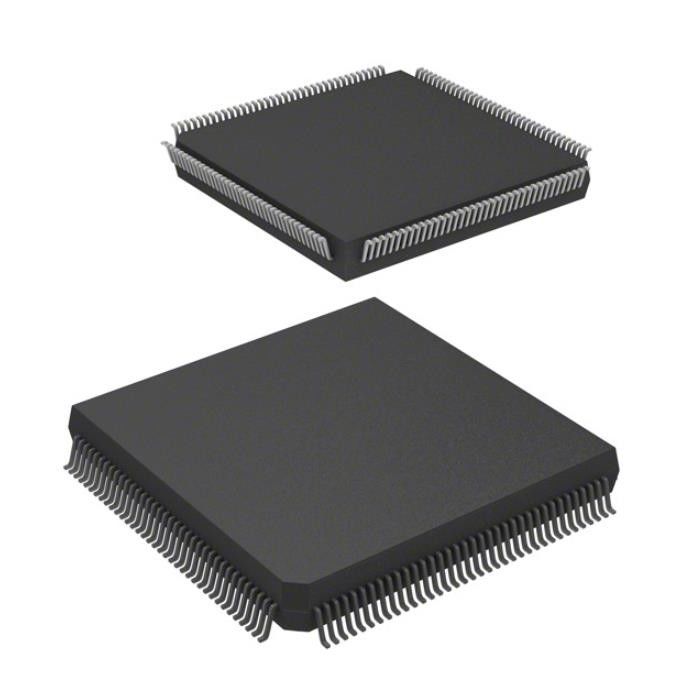

R7F7010303AFP#KA4 Tantalum Chip Capacitor Ic Mcu 32bit 1.5mb Flsh 144lfqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | R7F7010303AFP#KA4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Renesas Electronics America Inc | Series: | RH850/F1L |
|---|---|---|---|
| Package: | Tray | Product Status: | Active |
| Digi-Key Programmable: | Not Verified | Core Processor: | RH850G3K |
| Core Size: | 32-Bit Single-Core | Speed: | 80MHz |
Product Description
R7F7010303AFP#KA4 Tantalum Chip Capacitor Ic Mcu 32bit 1.5mb Flsh 144lfqfp
RH850G3K RH850/F1L Microcontroller IC 32-Bit Single-Core 80MHz 1.5MB (1.5M x 8) FLASH 144-LFQFP (20x20)
Specifications of R7F7010303AFP#KA4
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Renesas Electronics America Inc |
| Series | RH850/F1L |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | RH850G3K |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, CSI, I²C, LINbus, SPI, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 120 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 24x10b, 24x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LFQFP (20x20) |
| Base Product Number | R7F7010303 |
FEATURES of R7F7010303AFP#KA4
The features of the RH850/F1KH are described below. The RH850/F1KH is a 32-bit single-chip microcontroller with two G3KH CPU core. The key features of the F1KH are low power consumption, high computational processing power, and a wide variety of internal peripheral functions. To reduce supply current in a variety of applications, a wide range of power reducing measures are available. For example, there is a Low Power Sampler (LPS), that can poll signals input to the analog and digital input pins without CPU core interaction, and DeepSTOP mode in which the power supply to the most circuits of the microcontroller can be turned off.
Applications of R7F7010303AFP#KA4
The RH850/F1KH is ideal for automotive electronics, such as BCM (body control module), gateway, HVAC, lighting modules, and many other applications.
Environmental & Export Classifications of R7F7010303AFP#KA4
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
