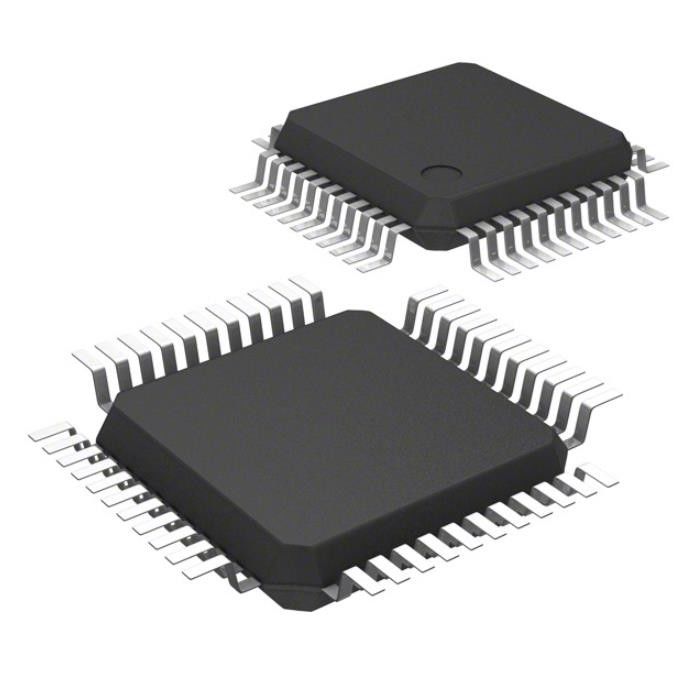

R5F100FGAFP#50 Tantalum Chip Capacitor Ic Mcu 16bit 128kb Flash 44lqfp

Ultra-low power consumption technology

• VDD = single power supply voltage of 1.6 to 5.5 V

• HALT mode

• STOP mode

• SNOOZE mode

RL78 CPU core

• CISC architecture with 3-stage pipeline

• Minimum instruction execution time: Can be changedfrom high speed (0.03125 μs: @ 32 MHz operationwith high-speed on-chip oscillator) to ultra-low speed(30.5 μs: @ 32.768 kHz operation with subsystemclock)

• Address space: 1 MB

• General-purpose registers: (8-bit register × 8) × 4 banks

• On-chip RAM: 2 to 32 KB

Code flash memory

• Code flash memory: 16 to 512 KB

• Block size: 1 KB

• Prohibition of block erase and rewriting (securityfunction)

• On-chip debug function

• Self-programming (with boot swap function/flash shieldwindow function)

Data Flash Memory

• Data flash memory: 4 KB to 8 KB

• Back ground operation (BGO): Instructions can beexecuted from the program memory while rewriting thedata flash memory.

• Number of rewrites: 1,000,000 times (TYP.)

• Voltage of rewrites: VDD = 1.8 to 5.5 V

High-speed on-chip oscillator

• Select from 32 MHz, 24 MHz, 16 MHz, 12 MHz, 8 MHz,6 MHz, 4 MHz, 3 MHz, 2 MHz, and 1 MHz

• High accuracy: +/- 1.0 % (VDD = 1.8 to 5.5 V, TA = -20 to +85°C)Operating ambient temperature

• TA = -40 to +85°C (A: Consumer applications, D: Industrial applications )

• TA = -40 to +105°C (G: Industrial applications)

Power management and reset function

• On-chip power-on-reset (POR) circuit

• On-chip voltage detector (LVD) (Select interrupt and reset from 14 levels)

DMA (Direct Memory Access) controller

• 2/4 channels

• Number of clocks during transfer between 8/16-bit SFR and internal RAM: 2 clocks
