PTN78060WAD Tantalum Chip Capacitor Dc Dc Converter 2.5-12.6v
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PTN78060WAD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Series: | PTN78060W |
|---|---|---|---|
| Package: | Tray | Product Status: | Active |
| Type: | Non-Isolated PoL Module | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 7V | Voltage - Input (Max): | 36V |
Product Description

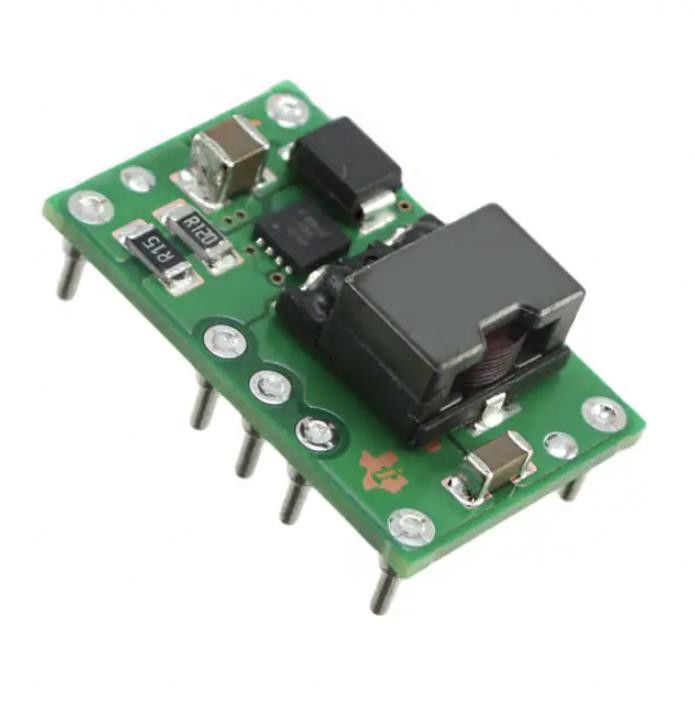

PTN78060WAD Tantalum Chip Capacitor Dc Dc Converter 2.5-12.6v
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 3A 7V - 36V Input
Specifications of PTN78060WAD
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Texas Instruments |
| Series | PTN78060W |
| Package | Tray |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 2.5 ~ 12.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 3A |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) |
| Base Product Number | PTN78060 |
FEATURES of PTN78060WAD
• 3-A Output Current
• Wide-Input Voltage (7 V to 36 V) / (15 V to 36 V)
• Wide-Output Voltage Adjust (2.5 V to 12.6 V) / (11.85 V to 22 V)
• High Efficiency (Up to 96%)
• On/Off Inhibit
• Under-Voltage Lockout
• Output Current Limit
• Overtemperature Shutdown
• Operating Temperature: -40°C to 85°C
• Surface Mount Package Available
Applications of PTN78060WAD
• General-Purpose, Industrial Controls, HVAC Systems
• Test and Measurement, Medical Instrumentation
• AC/DC Adaptors, Vehicles, Marine, and Avionics
Environmental & Export Classifications of PTN78060WAD
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
