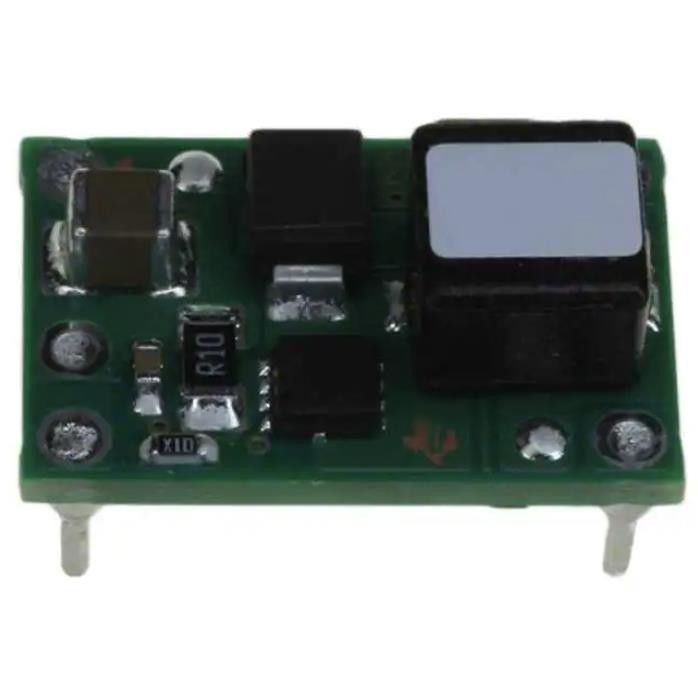

PTN78000AAH Tantalum Chip Capacitor Dc Dc Converter -15 To -3v
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PTN78000AAH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | PTN78000A | Package: | Tray |
|---|---|---|---|
| Product Status: | Active | Type: | Non-Isolated PoL Module |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 7V |
| Voltage - Input (Max): | 28.7V | Voltage - Output 1: | -15 ~ -3V |
Product Description
PTN78000AAH Tantalum Chip Capacitor Dc Dc Converter -15 To -3v
Non-Isolated PoL Module DC DC Converter 1 Output -15 ~ -3V 1.5A 7V - 28.7V Input
Specifications of PTN78000AAH
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Texas Instruments |
| Series | PTN78000A |
| Package | Tray |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 28.7V |
| Voltage - Output 1 | -15 ~ -3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 1.5A |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) |
| Base Product Number | PTN78000 |
FEATURES of PTN78000AAH
• 1.5-A Output Current
• Wide-Input Voltage (7 V to 29 V)
• Wide-Output Voltage Adjust (–15 V to –3 V)
• High Efficiency (Up to 84%)
• Output Current Limit
• Overtemperature Shutdown
• Operating Temperature: –40°C to 85°C
• Surface-Mount Package Available
Applications of PTN78000AAH
• General-Purpose, Industrial Controls, HVAC Systems, Test and Measurement, Medical Instrumentation, AC/DC Adaptors, Vehicles, Marine, and Avionics
Environmental & Export Classifications of PTN78000AAH
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
