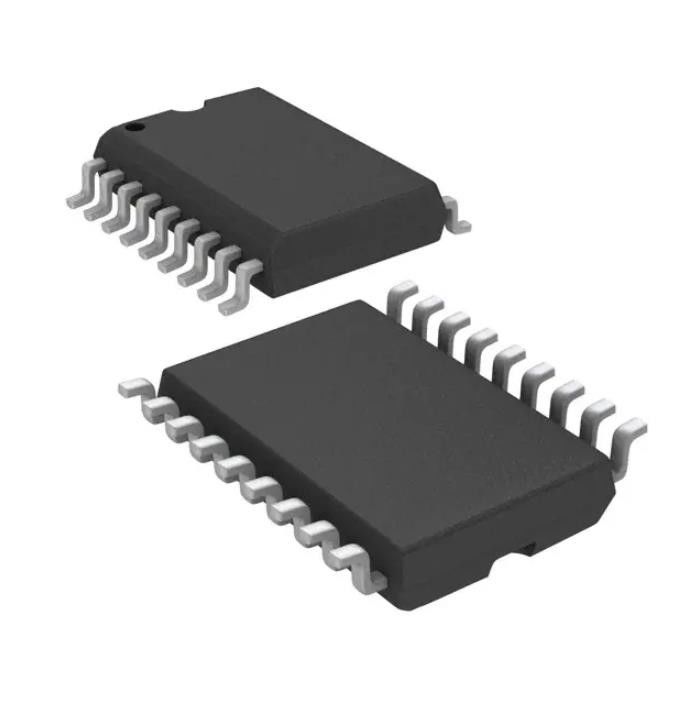

PIC16F716-I/SO Tantalum Chip Capacitor Ic Mcu 8bit 3.5kb Flash 18soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC16F716-I/SO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Microchip Technology | Series: | PIC® 16F |
|---|---|---|---|
| Package: | Tube | Product Status: | Active |
| Digi-Key Programmable: | Verified | Core Processor: | PIC |
| Core Size: | 8-Bit | Speed: | 20MHz |
Product Description
PIC16F716-I/SO Tantalum Chip Capacitor Ic Mcu 8bit 3.5kb Flash 18soic
PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 18-SOIC
Specifications of PIC16F716-I/SO
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 16F |
| Package | Tube |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 13 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 4x8b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC |
| Base Product Number | PIC16F716 |
FEATURES of PIC16F716-I/SO
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power-Saving Sleep mode
• Selectable oscillator options
• Fully static design
Applications of PIC16F716-I/SO
• 8-bit multi-channel Analog-to-Digital Converter
• 13 I/O pins with individual direction control
• Programmable weak pull-ups on PORTB
• Timer0: 8-bit timer/counter with 8-bit prescaler
Environmental & Export Classifications of PIC16F716-I/SO
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
