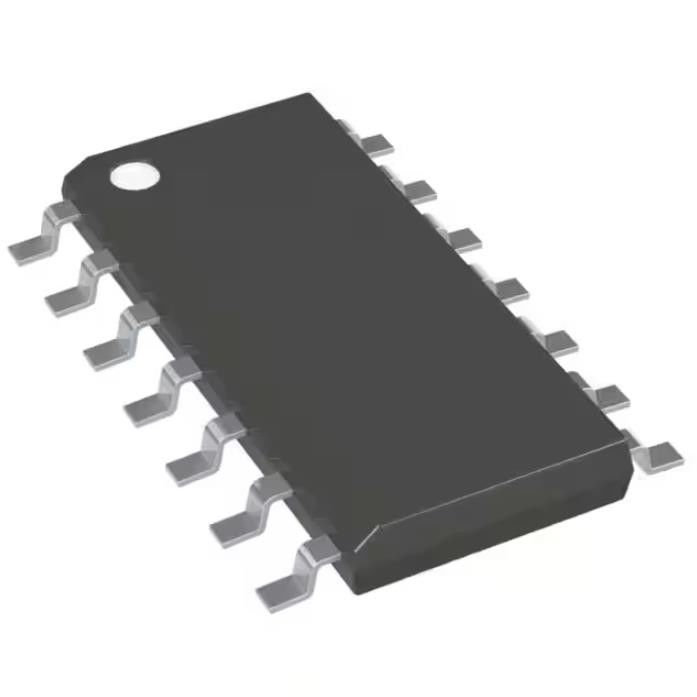

PIC16F684T-I/SL Tantalum Chip Capacitor Ic Mcu 8bit 3.5kb Flash 14soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC16F684T-I/SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 2V ~ 5.5V | Data Converters: | A/D 8x10b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | 20V/µs | Package / Case: | 10 MHz |
| Supplier Device Package: | 5 PA | Base Product Number: | 5 µV |
Product Description
PIC16F684T-I/SL Tantalum Chip Capacitor Ic Mcu 8bit 3.5kb Flash 14soic
PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 14-SOIC
Specifications of PIC16F684T-I/SL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 16F |
| Package | Tube |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | PIC16F684 |
FEATURES of PIC16F684T-I/SL
• Interrupt capability
• 8-level deep hardware stack
• Direct, Indirect and Relative Addressing modes
• Software Selectable 31 kHz Internal Oscillator
• Power-Saving Sleep mode
• Wide operating voltage range (2.0V-5.5V)
• Industrial and Extended Temperature range
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Applications of PIC16F684T-I/SL
• Multiplexed Master Clear with pull-up/input pin
• Programmable code protection
• Two analog comparators
• 16-bit timer/counter with prescaler
Environmental & Export Classifications of PIC16F684T-I/SL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
