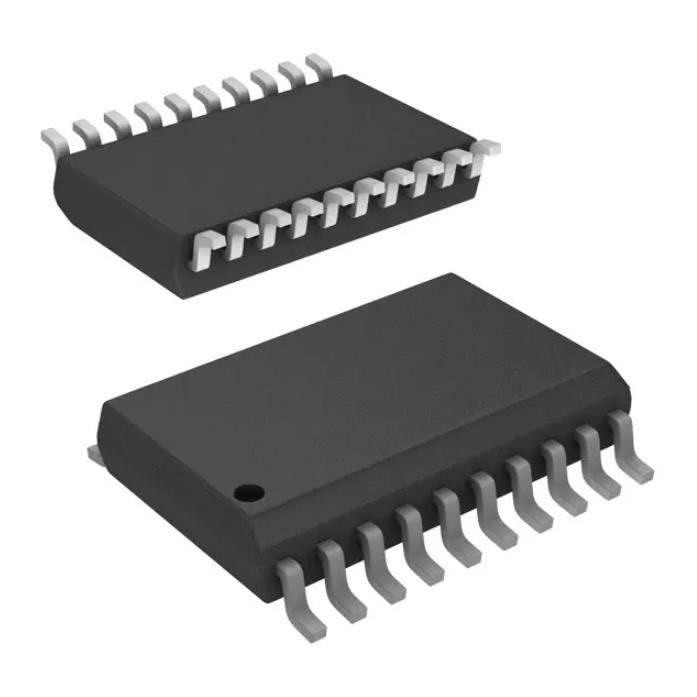

PIC16F1828T-I/SO Tantalum Chip Capacitor Ic Mcu 8bit 7kb Flash 20soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC16F1828T-I/SO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of I/O: | 17 | Program Memory Size: | 7KB (4K X 14) |
|---|---|---|---|
| Program Memory Type: | FLASH | EEPROM Size: | 256 X 8 |
| RAM Size: | 256 X 8 | Voltage - Supply (Vcc/Vdd): | 1.8V ~ 5.5V |
| Data Converters: | A/D 12x10b | Oscillator Type: | Internal |
Product Description
PIC16F1828T-I/SO Tantalum Chip Capacitor Ic Mcu 8bit 7kb Flash 20soic
PIC PIC® XLP™ mTouch™ 16F Microcontroller IC 8-Bit 32MHz 7KB (4K x 14) FLASH 20-SOIC
Specifications of PIC16F1828T-I/SO
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® XLP™ mTouch™ 16F |
| Package | Tube |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | PIC16F1828 |
FEATURES of PIC16F1828T-I/SO
• 31 kHz Low-Power Internal Oscillator
• Four Crystal modes up to 32 M
• Three External Clock modes up to 32 MHz
• 4X Phase Lock Loop (PLL)
• 1.8V-5.5V Operation – PIC16F1824/8
• 1.8V-3.6V Operation – PIC16LF
Applications of PIC16F1828T-I/SO
• Two Capture, Compare, PWM (CCP) modules
• Two Enhanced CCP (ECCP) mo
• Programmable Brown-out Reset (BOR)
• Extended Watchdog Timer (WDT)
Environmental & Export Classifications of PIC16F1828T-I/SO
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
