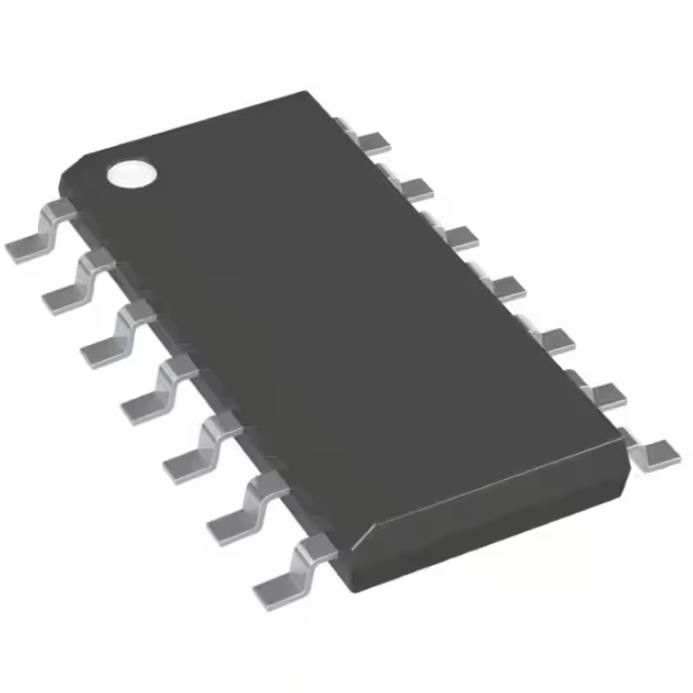

14SOIC PIC16F1823-I SL Microcontroller IC MCU 8BIT 3.5KB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC16F1823-I/SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Digi-Key Programmable: | Verified | Core Processor: | PIC |
| Core Size: | 8-Bit | Speed: | 32MHz |
| Connectivity: | I²C, LINbus, SPI, UART/USART | Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT |
| High Light: | PIC16F1823-I SL Microcontroller IC,IC MCU 8BIT 3.5KB,14SOIC Microcontroller IC |
||
Product Description
PIC16F1823-I/SL Tantalum Chip Capacitor Ic Mcu 8bit 3.5kb Flash 14soic
PIC PIC® XLP™ 16F Microcontroller IC 8-Bit 32MHz 3.5KB (2K x 14) FLASH 14-SOIC
Specifications of PIC16F1823-I/SL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® XLP™ 16F |
| Package | Tube |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | PIC16F1823 |
FEATURES of PIC16F1823-I/SL
• Analog-to-Digital Converter (ADC) module:
- 10-bit resolution, up to 8 channels
- Conversion available during Sleep
• Analog Comparator module:
- Up to two rail-to-rail analog comparators
- Power mode control
- Software controllable hysteresis
• Voltage Reference module:
- Fixed Voltage Reference (FVR) with 1.024V,
2.048V and 4.096V output levels
- 5-bit rail-to-rail resistive DAC with positive and negative reference selection
Applications of PIC16F1823-I/SL
• Data Signal Modulator module
- Selectable modulator and carrier sources
• SR Latch:
- Multiple Set/Reset input options
- Emulates 555 Timer applications
Environmental & Export Classifications of PIC16F1823-I/SL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
