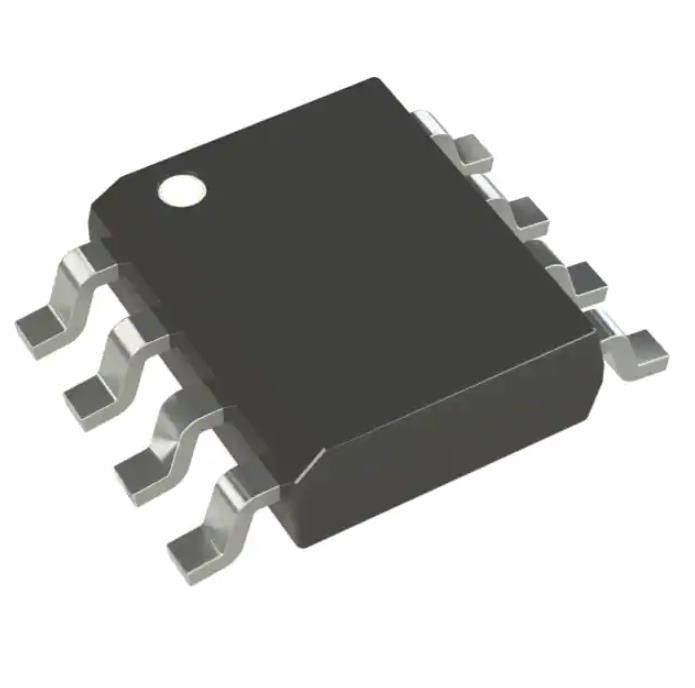

PIC12F683T-I/SN Tantalum Chip Capacitor Ic Mcu 8bit 3.5kb Flash 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PIC12F683T-I/SN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT | Number Of I/O: | 5 |
|---|---|---|---|
| Program Memory Size: | 3.5KB (2K X 14) | Program Memory Type: | FLASH |
| EEPROM Size: | 256 X 8 | RAM Size: | 128 X 8 |
| Voltage - Supply (Vcc/Vdd): | 2V ~ 5.5V | Data Converters: | A/D 4x10b |
Product Description
PIC12F683T-I/SN Tantalum Chip Capacitor Ic Mcu 8bit 3.5kb Flash 8soic
PIC PIC® 12F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 8-SOIC
Specifications of PIC12F683T-I/SN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 12F |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Verified |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 5 |
| Program Memory Size | 3.5KB (2K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | PIC12F683 |
FEATURES of PIC12F683T-I/SN
• Standby Current:
- 50 nA @ 2.0V, typical
• Operating Current:
- 11 μA @ 32 kHz, 2.0V, typical
- 220 μA @ 4 MHz, 2.0V, typical
• Watchdog Timer Current:
- 1 μA @ 2.0V, typical
Applications of PIC12F683T-I/SN
• TMR0/WDT prescaler
• External GP2/INT interrupt
• TMR0
• Weak pull-ups on GPIO
Environmental & Export Classifications of PIC12F683T-I/SN
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
