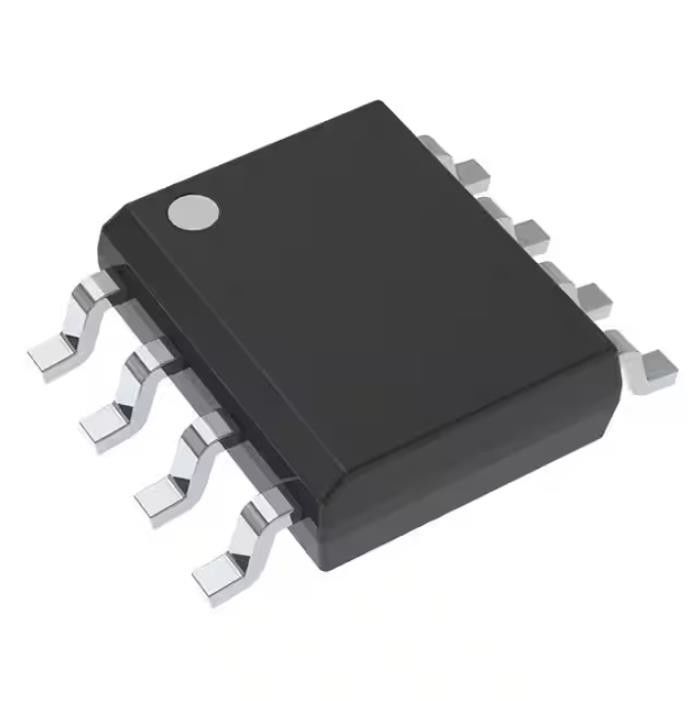

PGA103U Tantalum Chip Capacitor Ic Opamp Pga 1 Circuit 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PGA103U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Slew Rate: | 9V/µs | -3db Bandwidth: | 1.5 MHz |
|---|---|---|---|
| Current - Input Bias: | 50 NA | Voltage - Input Offset: | 200 µV |
| Current - Supply: | 2.6mA | Current - Output / Channel: | 25 MA |
| Voltage - Supply Span (Min): | 9 V | Voltage - Supply Span (Max): | 36 V |
Product Description
PGA103U Tantalum Chip Capacitor Ic Opamp Pga 1 Circuit 8soic
Programmable Gain Amplifier 1 Circuit 8-SOIC
Specifications of PGA103U
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Programmable Gain |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 9V/µs |
| -3db Bandwidth | 1.5 MHz |
| Current - Input Bias | 50 nA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 2.6mA |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | PGA103 |
FEATURES of PGA103U
● DIGITALLY PROGRAMABLE GAINS: G=1, 10, 100V/V
● CMOS/TTL-COMPATIBLE INPUTS
● LOW GAIN ERROR: ±0.05% max, G=10
● LOW OFFSET VOLTAGE DRIFT: 2µV/°C
● LOW QUIESCENT CURRENT: 2.6mA
● LOW COST
● 8-PIN PLASTIC DIP, SO-8 PACKAGES
Applications of PGA103U
● DATA ACQUISITION SYSTEMS
● GENERAL PURPOSE ANALOG BOARDS
● MEDICAL INSTRUMENTATION
Environmental & Export Classifications of PGA103U
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
